97 53 08 | Knipex

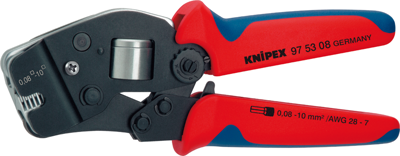

Crimping pliers for wire end ferrules, 0.08-10 mm², AWG 28-7, Knipex, 97 53 08
Order No.: 05L8399
EAN: 4003773040187
MPN:
97 53 08
975308
Unit Price (€ / pc.)
166.4810 € *
Available: 1 pcs.
Available in 7 Days: 10 pcs.
Leadtime: 1 Week **
Total Price:
166.48 € *
Price list
Quantity
Price per unit*
1 pcs.
166.4810 €
3 pcs.
149.8329 €
*incl. VAT plus shipping costs
**Subject to prior sale
For crimping end sleeves (ferrules) according to DIN 46228 parts 1 + 4. Self-adjusting adaptation to the desired end sleeve (ferrule) size: no wrong crimps caused by using the wrong die. Front loading of the end sleeves (ferrules) into the tool. Repetitive, high crimping quality due to integral lock (self-releasing mechanism). Crimping pressure has been set precisely (calibrated) in the factory, re-adjustable. Optimum transmission of force thanks to toggle lever for fatigue-reduced operation. Handy shape and low weight provide high operation comfort. Chrome vanadium electric steel in special quality, oil-hardened Model: Compression from 0.08 - 10.0 mm² in one profile. End sleeves (ferrules) up to 2.5 mm² can also be loaded parallely from the side. Suitable in particular for all twin end sleeves (ferrules) up to 2 x 4 mm² or 2 x AWG 10.
Technical specifications
| Crimping Range (AWG) | AWG 28-7 | |
| Crimping Range (mm²) | 0.08-10 mm² | |
| Suitable for | wire end ferrules | |
| Weight | 477 g | |
| Length | 190 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 82032000 |
Compliance
| RoHS conform | not_relevant |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
