607R12 | Klauke
Insulated tube cable lug, 10 mm², 13 mm, M12, yellow, 607R12
Order No.: 07F1277
EAN: 4012078468503
MPN:
607R12
Unit Price (€ / pc.)
4.0817 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
4.08 € *
Price list
Quantity
Price per unit*
1 pcs.
4.0817 €
10 pcs.
3.6771 €
50 pcs.
3.3082 €
100 pcs.
2.9750 €
*incl. VAT plus shipping costs
Subject to prior sale

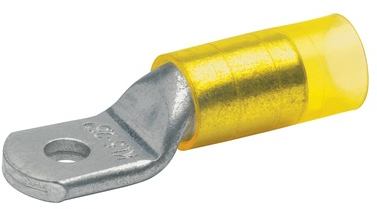

Insulated tubular cable lug, 607R12, Klauke
Insulated tubular cable lug for multi-stranded round conductors and pre-rounded multi-stranded sector shaped conductors.
Features
- Directly crimped with insulation
- Annealed material optimises material and crimping properties
- Simple and safe connection due to flat contact surfaces and internal chamfer
- Tin-plated to protect against corrosion
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable cross-section | 10 mm² | |
| Thread size | M12 | |
| Isolated | Yes | |
| max. operating temperature | 105 °C | |
| Material | copper, tin-plated | |
| Nominal size according to DIN | DIN 60228 | |
| Colour | yellow | |
| Version | tube cable lug | |
| Material Insulation | PA | |
| Hole diameter | 13 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
