603R6 | Klauke

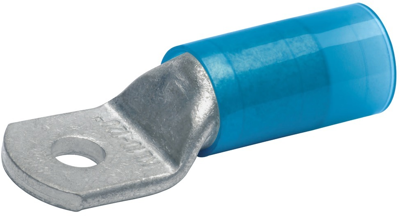

Insulated tube cable lug, 16 mm², 6.5 mm, M6, blue
Order No.: 07F1253
EAN: 4012078468176
MPN:
603R6
Unit Price (€ / pc.)
2.0111 € *
Available: 0 pcs.
Leadtime: On Request **
Insulated tubular cable lug, 603R6, Klauke
Insulated tubular cable lug for multi-stranded round conductors and pre-rounded multi-stranded sector shaped conductors.
Features
- Directly crimped with insulation
- Annealed material optimises material and crimping properties
- Simple and safe connection due to flat contact surfaces and internal chamfer
- Tin-plated to protect against corrosion
Technical specifications
| Version | tube cable lug | |
| Colour | blue | |
| Thread size | M6 | |
| Material Insulation | PA | |
| Isolated | Yes | |
| Cable cross-section | 16 mm² | |
| Hole diameter | 6.5 mm | |
| Material | copper, tin-plated | |
| max. operating temperature | 105 °C | |
| Nominal size according to DIN | DIN 60228 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
