L-424GDT | Kingbright
LED, THT, cylindrical, Ø 3 mm, green, 568 nm, 1 to 4 mcd, 100°, L-424GDT
Unit Price (€ / pc.)
0.2666 € *
Available: 902 pcs.
Leadtime: 2 Weeks **
Total Price:
1.33 € *
Price list
Quantity
Price per unit*
5 pcs.
0.2666 €
50 pcs.
0.1916 €
250 pcs.
0.1595 €
1000 pcs.
0.1357 €
2500 pcs.
0.1202 €
*incl. VAT plus shipping costs
**Subject to prior sale

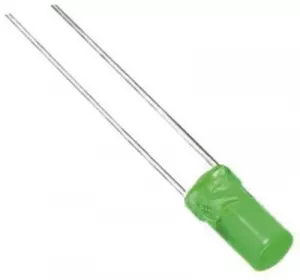

Cylindrical LED lamp, L-424GDT, Kingbright
The green source color device is made with gallium phosphide green light emitting diode.
Features
- Cylindrical type
- Low power consumption
- Reliable and rugged
- Long life - solid state reliability
- RoHS compliant
Technical specifications
| Radiation angle | 100 ° | |
| Number of LEDs | 1 | |
| On-State Voltage | 2.5 V | |
| Forward Current | 20 mA | |
| diameter | 3 mm | |
| Colour of the LED | green | |
| Enclosure | cylindrical | |
| Length | 4.8 mm | |
| Light intensity min. | 0.001 cd | |
| Light intensity typ. | 0.004 cd | |
| Lens | green | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Assembly | THT | |
| Wavelength | 568 nm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85414100 |
| Original Packaging | Reel with 1,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
