L-424GDT | Kingbright

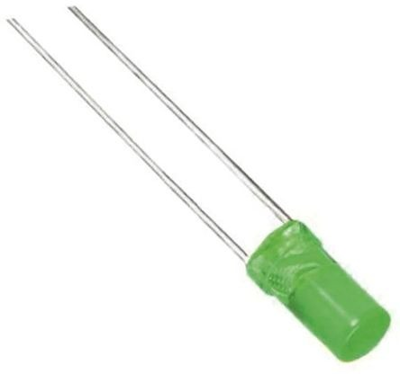

LED, THT, cylindrical, Ø 3 mm, green, 568 nm, 1 to 4 mcd, 100°, L-424GDT
Active
Total price
(
0.3570 €
* / pcs.)
7.14 €
Available: 105 pcs.
Quantity
Price per unit*
20 pcs.
0.3570 €
100 pcs.
0.2796 €
500 pcs.
0.2309 €
2000 pcs.
0.2047 €
4000 pcs.
0.1833 €
*incl. VAT plus
shipping costs
Please send price/quantity requests to info@buerklin.com
Description
Product by Kingbright at Bürklin Elektronik
LEDs, 3.0 mm, cylindrical, type Kingbright L-424.
Lens with diffuse color; Radiation angle: 100°.
Technical attributes (type, emission color, wavelength, luminosity (min./typical) at 10 mA): L–424GDT, green, 565 nm, 1.3/8.0 mcd
Technical specifications
| Radiation angle | 100 ° | |
| Number of LEDs | 1 | |
| On-State Voltage | 2.5 V | |
| Forward Current | 20 mA | |
| diameter | 3 mm | |
| Colour of the LED | green | |
| Enclosure | cylindrical | |
| Length | 4.8 mm | |
| Light intensity min. | 0.001 cd | |
| Light intensity typ. | 0.004 cd | |
| Lens | green | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Assembly | THT | |
| Wavelength | 0.568 µm |
Logistics
| Country of origin | CN |
| Customs tariff number | 85414100 |
| Original Packaging | Reel with 1,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
