SBC-NODEMCU-ESP32 | joy-iT
Tensilica LX6 Dual-Core development board, 240 MHz, SBC-NODEMCU-ESP32
Order No.: 73S3048
EAN: 4250236816104
MPN:
SBC-NODEMCU-ESP32
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
6.783 € *
Standard delivery time from the manufacturer is: 1 Week

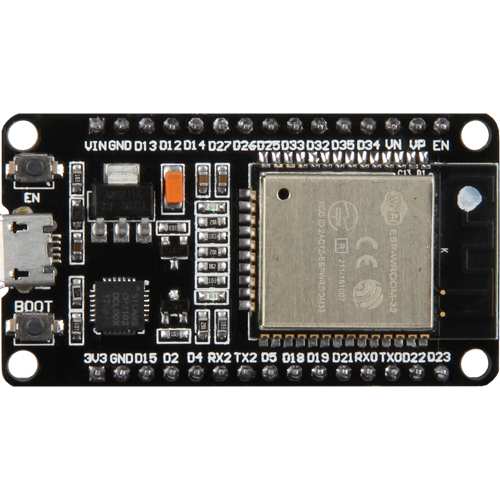

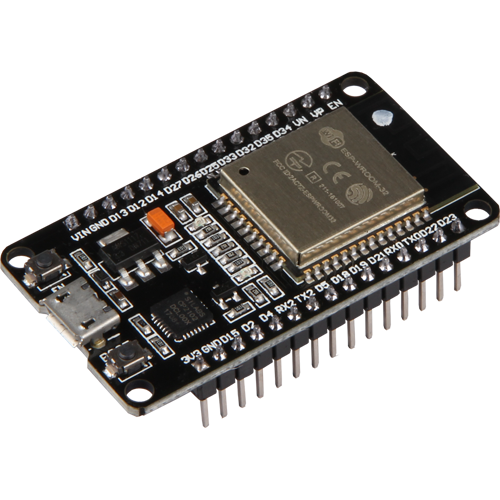

Microcontroller development board, SBC-NODEMCU-ESP32, joy-iT
With the NodeMCU-ESP32, comfortable prototyping is possible with simple programming via Luascript or the Arduino IDE and the breadboard-compatible design. This board has 2.4 GHz dual-mode Wifi and a BT wireless connection. In addition, a 512 KB SRAM and a 4MB flash memory are integrated into the microcontroller development board. The board has 21 pins for interface connection, including I2C, SPI, UART, DAC, and ADC.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | THT | |
| Processor core | Tensilica LX6 Dual-Core | |
| Clock frequency | 240 MHz | |
| Memory size | 4 MB | |
| Data RAM Size | 512 KB | |
| Protocol | I2C, SPI, UART, DAC, ADC | |
| Voltage | 3.3 V | |
| Number of pins | 21 | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 125 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84733020 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
