BUTTON22NA-01 | joy-iT
Emergency stop, rotary release, mounting Ø 22 mm, illuminated, red/green, 24 V, 1 Form A (N/O) + 1 Form B (N/C), BUTTON22NA-01
Order No.: 12G1394
EAN: 4250236825083
MPN:
BUTTON22NA-01
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
19.4446 € *
Available: 19 pcs.
Total Price:
19.44 € *
Price list
Quantity
Price per unit*
1 pcs.
19.4446 €
10 pcs.
18.3617 €
50 pcs.
17.2788 €
100 pcs.
16.2078 €
500 pcs.
15.1368 €
*incl. VAT plus shipping costs
Subject to prior sale
Emergency stop pushbutton, BUTTON22NA-01, joy-iT

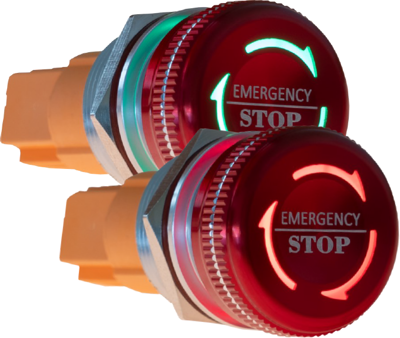

This latching emergency stop pushbutton convinces with high-quality materials, protection classes, and ergonomics. It is made of stainless steel and meets the protection classes IP67 (dust and water), IK10 (impact), and PA66 (flame). The steel pushbutton has a luminous LED ring, which can light up in two different colors (red & green). This is used to identify whether or not the emergency stop has already been pressed. When the emergency stop is pressed, the button will engage, this can be released by turning the switch.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Resetting | rotary release | |
| Contact function | latching | |
| illuminated | Yes | |
| Colour of the LED | red/green | |
| Collar shape of the front frame | round | |
| Installation diameter | 22 mm | |
| Height | 46.5 mm | |
| Degree of protection (IP) | IP67/IK10 | |
| Latching switching function | 1 Form A (N/O) + 1 Form B (N/C) | |
| Rated voltage | 24 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365019 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
