ECR2WLK100MFF501220 | Jianghai
Electrolytic capacitor, 10 µF, 450 V (DC), ±20 %, radial, pitch 5 mm, Ø 12.5 mm, ECR2WLK100MFF501220
Unit Price (€ / pc.)
1.3090 € *
Available: 3,608 pcs.
Total Price:
3.93 € *
Price list
Quantity
Price per unit*
3 pcs.
1.3090 €
15 pcs.
1.1186 €
75 pcs.
0.9877 €
400 pcs.
0.8687 €
800 pcs.
0.7854 €
*incl. VAT plus shipping costs
Subject to prior sale

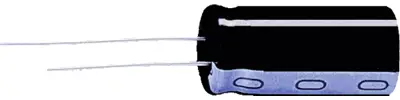

Electrolytic capacitor in insulated aluminum can, type Jianghai CD 261 LK.
Radial wire connection of approx. 15/20 mm length
Rated voltage 450 VDC.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 450 V | |
| Capacity | 10 µF | |
| Length | 20 mm | |
| Design | radial | |
| Version | polar | |
| diameter | 12.5 mm | |
| Connection | snap-in | |
| Grid | 5 mm | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -25 °C | |
| Tolerance | ±20 % | |
| ESR (Equivalent Series Resistance) | 31.847 Ω | |
| Ripple current | 320 mA |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322200 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
