ECR2ELK470MFF501225 | Jianghai

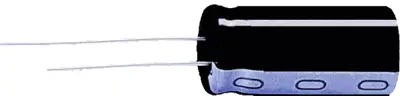

Electrolytic capacitor, 47 µF, 250 V (DC), ±20 %, radial, pitch 5 mm, Ø 12.5 mm

Order No.: 13D806
EAN: 4099879872913
MPN:
ECR2ELK470MFF501225
Series: CD 261
Jianghai
default L
Image may differ
Print
Key Specification:
Version polar
Capacity 47 µF
Rated voltage (DC) 250 V
Tolerance ±20 %
Show 6 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
0.7973 € *
Available: 338 pcs.
Leadtime: On Request **
Total Price:
7.97 € *
Price list
Quantity
Price per unit*
10 pcs.
0.7973 €
50 pcs.
0.7021 €
250 pcs.
0.6069 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance
Variations

Electrolytic capacitor in insulated aluminum can, type Jianghai CD 261 LK.

Radial wire connection of approx. 15/20 mm length

Rated voltage 250 VDC.
Technical specifications
Connection snap-in
Version polar
Design radial
diameter 12.5 mm
ESR (Equivalent Series Resistance) 5.08 Ω
Capacity 47 µF
Length 25 mm
max. operating temperature 105 °C
min. operating temperature -25 °C
Rated voltage (DC) 250 V
Grid 5 mm
Ripple current 720 mA
Tolerance ±20 %
Show similar products 0
Logistics
Country of origin CN
Customs tariff number 85322200
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
diameter
Unit:
Length
Unit:
Grid
Unit:
Rated voltage (DC)
Unit:
Capacity
Unit:
Ripple current
Unit:
Design
Version
Tolerance
Connection
min. operating temperature
max. operating temperature
1 item in 6 variations
*incl. VAT plus shipping costs
Item description
Total
Price list
diameter
Length
Grid
Rated voltage (DC)
Capacity
Ripple current
Design
Version
Tolerance
Connection
min. operating temperature
max. operating temperature
Electrolytic capacitor, 10 µF, 450 V (DC), ±20 %, radial, pitch 5 mm, Ø 12.5 mm
Electrolytic capacitor, 10 µF, 450 V (DC), ±20 %, radial, pitch 5 mm, Ø 12.5 mm
Order No.:
 13D818
Manufacturer:
 Jianghai
Manufacturer SKU:
 ECR2WLK100MFF501220
Available: 3,608 pcs. Leadtime: On Request **
Total Price: 3.93 € *
3 pcs.
1.3090 €
15 pcs.
1.1186 €
75 pcs.
0.9877 €
400 pcs.
0.8687 €
800 pcs.
0.7854 €
12.5 mm
20 mm
5 mm
450 V
10 µF
320 mA
radial
polar
±20 %
snap-in
-25 °C
105 °C
Electrolytic capacitor, 22 µF, 400 V (DC), ±20 %, radial, pitch 5 mm, Ø 12.5 mm
Electrolytic capacitor, 22 µF, 400 V (DC), ±20 %, radial, pitch 5 mm, Ø 12.5 mm
Order No.:
 13D812
Manufacturer:
 Jianghai
Manufacturer SKU:
 ECR2GLK220MFF501225
Available: 3,407 pcs. Leadtime: On Request **
Total Price: 5.36 € *
3 pcs.
1.7850 €
15 pcs.
1.5589 €
75 pcs.
1.3804 €
400 pcs.
1.2495 €
800 pcs.
1.1781 €
12.5 mm
25 mm
5 mm
400 V
22 µF
430 mA
radial
polar
±20 %
snap-in
-25 °C
105 °C
