ECR2GLK470MLL751631 | Jianghai

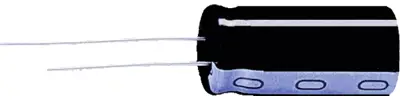

Electrolytic capacitor, 47 µF, 400 V (DC), ±20 %, radial, pitch 7.5 mm, Ø 16 mm

Order No.: 13D816
EAN: 4099879872951
MPN:
ECR2GLK470MLL751631
Series: CD 261
Jianghai
default L
Image may differ
Print
Key Specification:
Version polar
Capacity 47 µF
Rated voltage (DC) 400 V
Tolerance ±20 %
Show 6 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
1.6422 € *
Available: 0 pcs.
Leadtime: 1 Week **
Add to Cart
Total Price:
1.64 € *
*incl. VAT plus shipping costs
**Subject to prior sale
10 pcs.
1.6422 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

Electrolytic capacitor in insulated aluminum can, type Jianghai CD 261 LK.

Radial wire connection of approx. 15/20 mm length

Rated voltage 400 VDC.
Technical specifications
Connection snap-in
Version polar
Design radial
diameter 16 mm
ESR (Equivalent Series Resistance) 6.8 Ω
Capacity 47 µF
Length 31.5 mm
max. operating temperature 105 °C
min. operating temperature -25 °C
Rated voltage (DC) 400 V
Grid 7.5 mm
Ripple current 840 mA
Tolerance ±20 %
Show similar products 0
Logistics
Country of origin CN
Customs tariff number 85322200
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
diameter
Unit:
Length
Unit:
Grid
Unit:
Rated voltage (DC)
Unit:
Capacity
Unit:
Ripple current
Unit:
Design
Version
Tolerance
Connection
min. operating temperature
max. operating temperature
1 item in 6 variations
*incl. VAT plus shipping costs
Item description
Total
Price list
diameter
Length
Grid
Rated voltage (DC)
Capacity
Ripple current
Design
Version
Tolerance
Connection
min. operating temperature
max. operating temperature
Electrolytic capacitor, 22 µF, 400 V (DC), ±20 %, radial, pitch 5 mm, Ø 12.5 mm
Electrolytic capacitor, 22 µF, 400 V (DC), ±20 %, radial, pitch 5 mm, Ø 12.5 mm
Order No.:
 13D812
Manufacturer:
 Jianghai
Manufacturer SKU:
 ECR2GLK220MFF501225
Available: 3,407 pcs. Leadtime: On Request **
Total Price: 5.36 € *
3 pcs.
1.7850 €
15 pcs.
1.5589 €
75 pcs.
1.3804 €
400 pcs.
1.2495 €
800 pcs.
1.1781 €
12.5 mm
25 mm
5 mm
400 V
22 µF
430 mA
radial
polar
±20 %
snap-in
-25 °C
105 °C
Electrolytic capacitor, 10 µF, 450 V (DC), ±20 %, radial, pitch 5 mm, Ø 12.5 mm
Electrolytic capacitor, 10 µF, 450 V (DC), ±20 %, radial, pitch 5 mm, Ø 12.5 mm
Order No.:
 13D818
Manufacturer:
 Jianghai
Manufacturer SKU:
 ECR2WLK100MFF501220
Available: 3,608 pcs. Leadtime: On Request **
Total Price: 3.93 € *
3 pcs.
1.3090 €
15 pcs.
1.1186 €
75 pcs.
0.9877 €
400 pcs.
0.8687 €
800 pcs.
0.7854 €
12.5 mm
20 mm
5 mm
450 V
10 µF
320 mA
radial
polar
±20 %
snap-in
-25 °C
105 °C
