ECR1HGC102MLL751631 | Jianghai

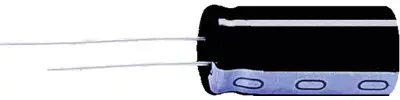

Electrolytic capacitor, 1000 µF, 50 V (DC), ±20 %, radial, pitch 7.5 mm, Ø 16 mm, ECR1HGC102MLL751631
Unit Price (€ / pc.)
1.1662 € *
Available: 63 pcs.
Leadtime: On Request **
Total Price:
5.83 € *
Price list
Quantity
Price per unit*
5 pcs.
1.1662 €
25 pcs.
1.0472 €
*incl. VAT plus shipping costs
**Subject to prior sale
Electrolytic capacitor in insulated aluminum can, type Jianghai CD 287 GC.
Radial wire connection of approx. 15/20 mm length and very low ESR
Rated voltage 50 VDC.
Technical specifications
| Rated voltage (DC) | 50 V | |
| Capacity | 1000 µF | |
| diameter | 16 mm | |
| Grid | 7.5 mm | |
| Length | 31.5 mm | |
| Version | polar | |
| Design | radial | |
| ESR (Equivalent Series Resistance) | 140 mΩ | |
| min. operating temperature | -55 °C | |
| Connection | snap-in | |
| Tolerance | ±20 % | |
| max. operating temperature | 105 °C | |
| Ripple current | 1.4 A |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85322200 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
