ECR1VGC102MFF751620 | Jianghai

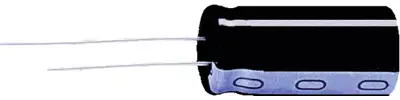

Electrolytic capacitor, 1000 µF, 35 V (DC), ±20 %, radial, pitch 7.5 mm, Ø 16 mm
Images may differ
Total price
( 0.9163 € * / pcs.)
4.58 €
Available: 355 pcs.
Leadtime
Quantity
Price per unit*
5 pcs.
0.9163 €
25 pcs.
0.7735 €
125 pcs.
0.6783 €
500 pcs.
0.5950 €
1000 pcs.
0.5474 €
*incl. VAT plus shipping costs
Description
Electrolytic capacitor in insulated aluminum can, type Jianghai CD 287 GC.
Radial wire connection of approx. 15/20 mm length and very low ESR
Rated voltage 35 VDC.
Technical specifications
| Connection | snap-in | |
| Version | polar | |
| Design | radial | |
| diameter | 16 mm | |
| ESR (Equivalent Series Resistance) | 191 mΩ | |
| Capacity | 1000 µF | |
| Length | 20 mm | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -55 °C | |
| Rated voltage (DC) | 35 V | |
| Grid | 7.5 mm | |
| Ripple current | 1.73 A | |
| Tolerance | ±20 % |
Logistics
| Country of origin | CN |
| Customs tariff number | 85322200 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
Download
Variations
Search results: 1 item in 2 variations
*incl. VAT plus shipping costs
Order No.:
13D850
Manufacturer:
Jianghai
Manufacturer SKU:
ECR1VGC102MFF751620
4.58 € *
5 pcs.
0.9163 €
25 pcs.
0.7735 €
125 pcs.
0.6783 €
500 pcs.
0.5950 €
1000 pcs.
0.5474 €
Available: 355 pcs.
Leadtime
20 mm
35 V
1.73 A
radial
16 mm
polar
7.5 mm
±20 %
snap-in
-55 °C
1000 µF
105 °C
Order No.:
13D864
Manufacturer:
Jianghai
Manufacturer SKU:
ECR1HGC102MLL751631
5.77 € *
5 pcs.
1.1543 €
25 pcs.
1.0353 €
Available: 63 pcs.
Leadtime
31.5 mm
50 V
1.4 A
radial
16 mm
polar
7.5 mm
±20 %
snap-in
-55 °C
1000 µF
105 °C
