SMT-R500-1.0 | Isabellenhütte

Resistor, metal foil, SMD 2817, 500 mΩ, 7 W, ±1 %, SMT-R500-1.0

Order No.: 09E510
EAN: 4099879203281
MPN:
SMT-R500-1.0
Series: SMT

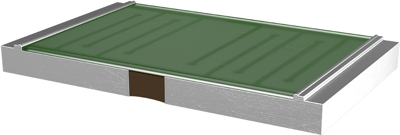

SMT-R500-1.0 Isabellenhütte SMD Resistors Image 1
SMT-R500-1.0 Isabellenhütte SMD Resistors Image 2
Image may differ
Unit Price (€ / pc.)
2.4157 € *
Available: 3,585 pcs.
Total Price:
2.42 € *
Price list
Quantity
Price per unit*
1 pcs.
2.4157 €
25 pcs.
2.0587 €
100 pcs.
1.9040 €
250 pcs.
1.8088 €
1000 pcs.
1.6422 €
*incl. VAT plus shipping costs
Subject to prior sale

SMD precision resistor, size 2817, 2.0 to 5.0 W, tolerance 1.0 %, series ISA-PLAN, type Isabellenhütte SMT.

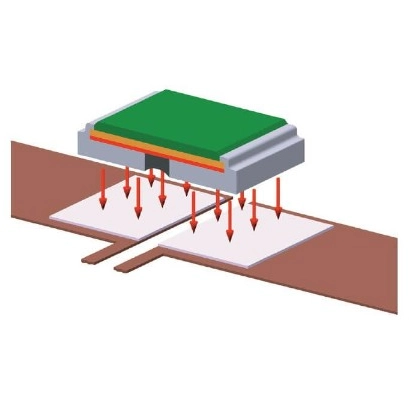

Suitable for use as two-wire resistor, four-wire connection on the solder pad. Ideal for clocked applications due to low inductance

Load rating 5.0 W.

Technical specifications
Filter Property Value
Temperature coefficient ±100 ppm/K
Power 7 W
max. operating temperature 170 °C
ohmic resistance 500 mΩ
min. operating temperature -55 °C
Height 0.8 mm
Tolerance ±1 %
Length 7.1 mm
Design SMD 2817
Technology metal foil
Logistics
Property Value
Country of origin DE
Customs tariff number 85332100
Original Packaging Reel with 5,000 pieces
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
