SMT-R004-1.0 | Isabellenhütte

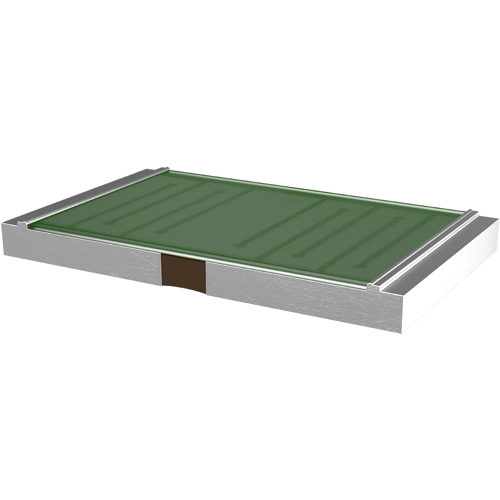

Resistor, metal foil, SMD 2817, 4 mΩ, 7 W, ±1 %, SMT-R004-1.0
Unit Price (€ / pc.)
2.9750 € *
Available: 139 pcs.
Total Price:
2.98 € *
Price list
Quantity
Price per unit*
1 pcs.
2.9750 €
25 pcs.
2.5347 €
100 pcs.
2.3443 €
250 pcs.
2.2253 €
1000 pcs.
2.0349 €
*incl. VAT plus shipping costs
Subject to prior sale
Resistor, SMT-R004-1.0, ISABELLENH
The SMT-R004-1.0 is a precision resistor with control system for the automotive market and current sensor for power hybrid applications.
Features
- Excellent long-term stability
- High pulse power rating
- Reflow-, and IR-soldering
- RoHS compliant
Applications
- Power modules
- Frequency converters
- Switch mode power supplies
Technical specifications
| Filter | Property | Value |
|---|---|---|
| ohmic resistance | 4 mΩ | |
| Tolerance | ±1 % | |
| Power | 7 W | |
| Design | SMD 2817 | |
| Temperature coefficient | ±50 ppm/K | |
| Technology | metal foil | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 170 °C | |
| Length | 7.1 mm | |
| Height | 0.8 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Original Packaging | Reel with 5,000 pieces |
| Customs tariff number | 85332100 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
