BVT-M-R001-1 | Isabellenhütte

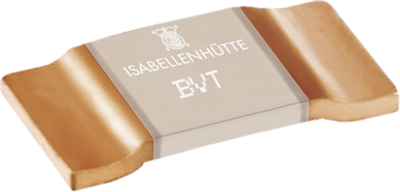

Resistor, metal plate, SMD 2512 (6330), 1 mΩ, 6 W, ±1 %, BVT-M-R001-1
Unit Price (€ / pc.)
1.7374 € *
Available: 367 pcs.
Total Price:
1.74 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7374 €
10 pcs.
1.2376 €
100 pcs.
1.0591 €
500 pcs.
0.9163 €
1000 pcs.
0.8449 €
*incl. VAT plus shipping costs
Subject to prior sale
SMD precision resistors, size 2512, 1.5 to 3.0 W, series ISA-WELD, type Isabellenhütte BVT.
Two-wire resistor with very low resistance and low inductance, conceived especially for currents up to 77 A (0.5 mohm)
1.0 % tolerance, type BVT.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Temperature coefficient | ±100 ppm/K | |
| Power | 6 W | |
| max. operating temperature | 170 °C | |
| ohmic resistance | 1 mΩ | |
| Width | 3 mm | |
| min. operating temperature | -65 °C | |
| Height | 0.35 mm | |
| Tolerance | ±1 % | |
| Length | 6.35 mm | |
| Design | SMD 2512 (6330) | |
| Technology | metal plate |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85332100 |
| Original Packaging | Reel with 5,000 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
