BVS-M-R0003-1.0 | Isabellenhütte

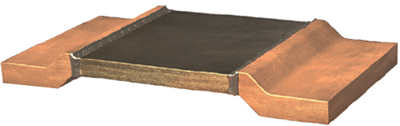

Resistor, metal plate, SMD 3920, 300 µΩ, 5 W, ±1 %, BVS-M-R0003-1.0
Unit Price (€ / pc.)
1.3090 € *
Standard delivery time from the manufacturer is: On Request
Resistor, BVS-M-R0003-1.0, ISABELLENH
The BVS-M-R0003-1.0 is a precision resistor with high current applications for the automotive market and current sensor for power hybrid applications.
Features
- Heavy copper connectors
- Excellent long-term stability
- RoHS compliant
Applications
- Frequency converters
- Power modules
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 0.5 mm | |
| min. operating temperature | -65 °C | |
| max. operating temperature | 170 °C | |
| Power | 5 W | |
| Tolerance | ±1 % | |
| Temperature coefficient | ±150 ppm/K | |
| Technology | metal plate | |
| Design | SMD 3920 | |
| Length | 10 mm | |
| ohmic resistance | 300 µΩ |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85332100 |
| Country of origin | DE |
| Original Packaging | Reel with 5,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
