BVS-M-R0005-1.0 | Isabellenhütte

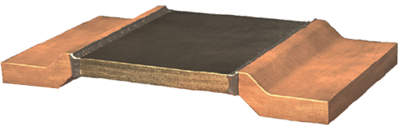

Resistor, metal plate, SMD 3920, 500 µΩ, 5 W, ±1 %, BVS-M-R0005-1.0

Isabellenhütte
default L
default S
Images may differ
Order No.:  09E572
Manufacturer:  Isabellenhütte
Manufacturer SKU: BVS-M-R0005-1.0
Manufacturer series:  BVS
EAN: 4099879203311
about the green icons
Total price
( 2.2967 € * / pcs.)
2.30 €
Available: 4,110 pcs.
Quantity
Price per unit*
1 pcs.
2.2967 €
10 pcs.
1.8683 €
100 pcs.
1.5708 €
250 pcs.
1.3566 €
1000 pcs.
1.1900 €
*incl. VAT plus shipping costs
Show 9 variants
Description
Technical specifications
Logistics
Compliance
Download
Variations
Description

Product by Isabellenhütte at Bürklin Elektronik

SMD precision resistors, size 3920, 2.5 to 5.0 W, series ISA-WELD, type Isabellenhütte BVS.

Suitable for use as two-wire resistor with very low resistance and low inductance, four-wire connection on the solder pad. Conceived especially for currents up to 160 A (0.5 mohm)

1.0 % tolerance, type BVS.
Technical specifications
ohmic resistance 500 µΩ

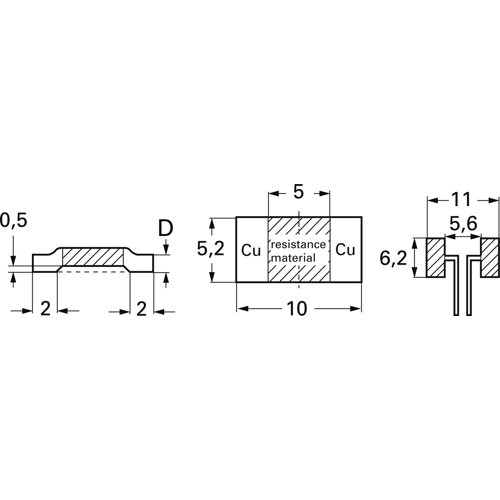

Design SMD 3920
Height 0.5 mm
Length 10 mm
Power 5 W
max. operating temperature 170 °C
min. operating temperature -65 °C
Assembly Reflow/IR-solder mounting
Technology metal plate
Temperature coefficient ±70 ppm/K
Tolerance ±1 %
Show similar products (0)
Logistics
Country of origin DE
Customs tariff number 85332100
Original Packaging Reel with 3,000 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
Design
ohmic resistance
Unit
Length
Unit
Tolerance
Height
Unit
Assembly
min. operating temperature
max. operating temperature
Power
Unit
Technology
1 item in 9 variations
*incl. VAT plus shipping costs
Item description
Price list
Total
Design
ohmic resistance
Length
Tolerance
Height
Assembly
min. operating temperature
max. operating temperature
Power
Technology
Resistor, metal plate, SMD 3920, 2 mΩ, 4 W, ±1 %, BVS-A-R002-1.0
Resistor, metal plate, SMD 3920, 2 mΩ, 4 W, ±1 %, BVS-A-R002-1.0
Order No.:
 09E576
Manufacturer:
 Isabellenhütte
Manufacturer SKU:
 BVS-A-R002-1.0
1 pcs.
2.3443 €
10 pcs.
1.8921 €
100 pcs.
1.5946 €
250 pcs.
1.3804 €
1000 pcs.
1.2138 €
2.34 € *
Available: 2,953 pcs.
SMD 3920
2 mΩ
10 mm
±1 %
0.5 mm
Reflow/IR-solder mounting
-65 °C
170 °C
4 W
metal plate
Resistor, metal plate, SMD 3920, 500 µΩ, 5 W, ±1 %, BVS-M-R0005-1.0
Resistor, metal plate, SMD 3920, 500 µΩ, 5 W, ±1 %, BVS-M-R0005-1.0
Order No.:
 09E572
Manufacturer:
 Isabellenhütte
Manufacturer SKU:
 BVS-M-R0005-1.0
1 pcs.
2.2967 €
10 pcs.
1.8683 €
100 pcs.
1.5708 €
250 pcs.
1.3566 €
1000 pcs.
1.1900 €
2.30 € *
Available: 4,110 pcs.
SMD 3920
500 µΩ
10 mm
±1 %
0.5 mm
Reflow/IR-solder mounting
-65 °C
170 °C
5 W
metal plate
Resistor, metal plate, SMD 3920, 3 mΩ, 3 W, ±1 %, BVS-A-R003-1.0
Resistor, metal plate, SMD 3920, 3 mΩ, 3 W, ±1 %, BVS-A-R003-1.0
Order No.:
 09E578
Manufacturer:
 Isabellenhütte
Manufacturer SKU:
 BVS-A-R003-1.0
1 pcs.
2.1777 €
10 pcs.
1.7731 €
100 pcs.
1.4875 €
250 pcs.
1.2852 €
1000 pcs.
1.1305 €
2.18 € *
Available: 724 pcs.
Next delivery: 400 pcs. on 2023-09-08
SMD 3920
3 mΩ
10 mm
±1 %
0.5 mm
Reflow/IR-solder mounting
-65 °C
170 °C
3 W
metal plate
Resistor, metal plate, SMD 3920, 1 mΩ, 4 W, ±1 %, BVS-M-R001-1.0
Resistor, metal plate, SMD 3920, 1 mΩ, 4 W, ±1 %, BVS-M-R001-1.0
Order No.:
 09E574
Manufacturer:
 Isabellenhütte
Manufacturer SKU:
 BVS-M-R001-1.0
1 pcs.
2.1063 €
10 pcs.
1.7017 €
100 pcs.
1.4280 €
250 pcs.
1.2376 €
1000 pcs.
1.0829 €
2.11 € *
Available: 2,656 pcs.
SMD 3920
1 mΩ
10 mm
±1 %
0.5 mm
Reflow/IR-solder mounting
-65 °C
170 °C
4 W
metal plate
Resistor, metal plate, SMD 3920, 4 mΩ, 2.5 W, ±1 %, BVS-A-R004-1.0
Resistor, metal plate, SMD 3920, 4 mΩ, 2.5 W, ±1 %, BVS-A-R004-1.0
Order No.:
 09E580
Manufacturer:
 Isabellenhütte
Manufacturer SKU:
 BVS-A-R004-1.0
1 pcs.
2.0587 €
10 pcs.
1.6779 €
100 pcs.
1.4042 €
250 pcs.
1.2138 €
1000 pcs.
1.0710 €
2.06 € *
Available: 1,892 pcs.
SMD 3920
4 mΩ
10 mm
±1 %
0.5 mm
Reflow/IR-solder mounting
-65 °C
170 °C
2.5 W
metal plate
Resistor, metal plate, SMD 3920, 2 mΩ, 4 W, ±1 %, BVS-I-R002-1
Resistor, metal plate, SMD 3920, 2 mΩ, 4 W, ±1 %, BVS-I-R002-1
Order No.:
 09E579
Manufacturer:
 Isabellenhütte
Manufacturer SKU:
 BVS-I-R002-1
1 pcs.
2.8084 €
100 pcs.
2.4514 €
500 pcs.
1.7850 €
1000 pcs.
1.5232 €
5000 pcs.
1.4042 €
2.81 € *
Available: 41 pcs.
SMD 3920
2 mΩ
10 mm
±1 %
0.5 mm
Reflow/IR-solder mounting
-65 °C
170 °C
4 W
metal plate
Resistor, metal plate, SMD 3920, 300 µΩ, 5 W, ±1 %, BVS-M-R0003-1.0
Resistor, metal plate, SMD 3920, 300 µΩ, 5 W, ±1 %, BVS-M-R0003-1.0
Order No.:
 09E1543
Manufacturer:
 Isabellenhütte
Manufacturer SKU:
 BVS-M-R0003-1.0
1 pcs.
2.2967 €
100 pcs.
2.0111 €
500 pcs.
1.4518 €
1000 pcs.
1.2376 €
5000 pcs.
1.1543 €
2.30 € *
Available: 6,000 pcs.
SMD 3920
300 µΩ
10 mm
±1 %
0.5 mm
Reflow/IR-solder mounting
-65 °C
170 °C
5 W
metal plate
Resistor, metal plate, SMD 3920, 300 µΩ, 5 W, ±5 %, BVS-M-R0003-5.0
Resistor, metal plate, SMD 3920, 300 µΩ, 5 W, ±5 %, BVS-M-R0003-5.0
Order No.:
 09E1544
Manufacturer:
 Isabellenhütte
Manufacturer SKU:
 BVS-M-R0003-5.0
0 pcs.
0.00 €
0.00 € *
Currently not in stock, we will order for you
SMD 3920
300 µΩ
10 mm
±5 %
0.5 mm
Reflow/IR-solder mounting
-65 °C
170 °C
5 W
metal plate
Resistor, metal plate, SMD 3920, 1 mΩ, 5 W, ±1 %, BVS-A-R001-1
Resistor, metal plate, SMD 3920, 1 mΩ, 5 W, ±1 %, BVS-A-R001-1
Order No.:
 09E573
Manufacturer:
 Isabellenhütte
Manufacturer SKU:
 BVS-A-R001-1
1 pcs.
2.6894 €
10 pcs.
2.2372 €
100 pcs.
1.9159 €
250 pcs.
1.7374 €
1000 pcs.
1.5946 €
2.69 € *
Currently not in stock, we will order for you
SMD 3920
1 mΩ
10 mm
±1 %
0.5 mm
Reflow/IR-solder mounting
-65 °C
170 °C
5 W
metal plate
