BAS170WE6327 | Infineon Technologies
Schottky diode, 70 V, 70 mA, SOD323

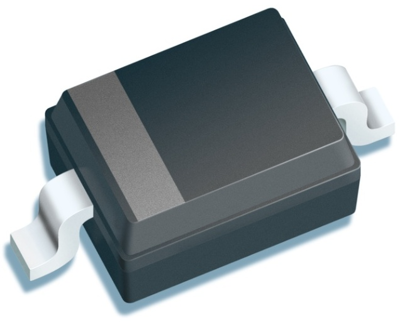

Images may differ
Discontinued
Unit Price (€ / pc.)
0.2190 € *
Available: 2,024 pcs.
Leadtime: On Request **
Total Price:
2.19 € *
Quantity
Price per unit*
10 pcs.
0.2190 €
100 pcs.
0.1618 €
500 pcs.
0.1273 €
1000 pcs.
0.1071 €
2500 pcs.
0.0952 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Schottky diode, BAS170WE6327, Infineon Technologies
Features
- Circuit protection
- Voltage clamping
- High-level detecting and mixing
- Pb-free and RoHs-compliant
Applications
- General-purpose diode for high-speed switching
Technical specifications
| Number of diodes | 1 | |
| Version | schottky rectifier diode | |
| Design | SMD | |
| Forward Current | 70 mA | |
| Enclosure | SOD-323 | |
| Capacity | 2 pF | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -55 °C | |
| Assembly | SMD | |
| Voltage V RRM (peak reverse voltage) | 70 V | |
| Junction temperature (max.) | 150 °C |
Download
Logistics
| Country of origin | MY |
| Customs tariff number | 85411000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
