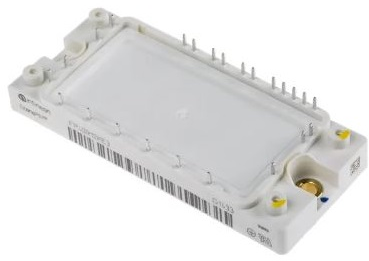

FP40R12KE3BOSA1 | Infineon Technologies
IGBT PIM Mod.3ph.55A 2,3V 200W FP40R12KE3BOSA1
Order No.: 17S7434
EAN: 4099879035660
MPN:
FP40R12KE3BOSA1
IGBTModule NCH 1200V 55A 210W 24Pin ECONO2-5 Tray
Series: FP40R
IGBT Transistor, FP40R12KE3BOSA1, NXP
The Insulated Gate Bipolar Transistor or IGBT is a three-terminal power semiconductor device, noted for high efficiency and fast switching. The IGBT combines the simple gate-drive characteristics of the MOSFETs with the high-current and low–saturation-voltage capability of bipolar transistors by combining an isolated gate FET for the control input, and a bipolar power transistor as a switch, in a single device.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | three phase inverter | |
| Usage | power management/medical | |
| max. Voltage | 1200 V | |
| Max. current | 55 A | |
| max. operating temperature | 125 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Tray with 10 pieces |
| Customs tariff number | 85412900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
