IRFB4310PBF | Infineon Technologies

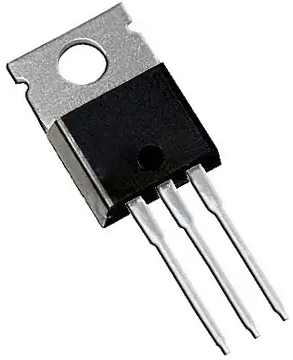

INFINEON THT MOSFET NFET 100V 130A 7mΩ 175°C TO-220 IRFB4310PBF
Active
Total price
(
2.4157 €
* / pcs.)
2.42 €
Available: 500 pcs.
Quantity
Price per unit*
1 pcs.
2.4157 €
10 pcs.
2.2491 €
50 pcs.
2.1658 €
250 pcs.
2.0825 €
500 pcs.
2.0230 €
*incl. VAT plus
shipping costs
Please send price/quantity requests to info@buerklin.com
Description
Product by Infineon Technologies at Bürklin Elektronik
MOSFET, IRFB4310PBF, Infineon Technologies
Features
- Improved gate, avalanche and dynamic dV/dt ruggedness
- Fully characterized capacitance and avalanche SOA
- Enhanced body diode dV/dt and dI/dt capability
Applications
- High efficiency synchronous rectification in SMPS
- Uninterruptible power supply
- High speed power switching
- Hard switched and high frequency circuits
Technical specifications
| Version | N channel | |
| drain-source on resistance RDS (on) max @VGS=10V | 0.007 Ω | |
| Gate Charge Qg @10V (nC) | 1.7x10<sup>-7</sup> C | |
| Enclosure | TO-220 | |
| max. Voltage | 100 V | |
| Max. current | 130 A | |
| max. operating temperature | 175 °C | |
| min. operating temperature | -55 °C | |
| Assembly | THT | |
| Power loss | 300 W |
Logistics
| Customs tariff number | 85412900 |
| Original Packaging | Bar with 100 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
