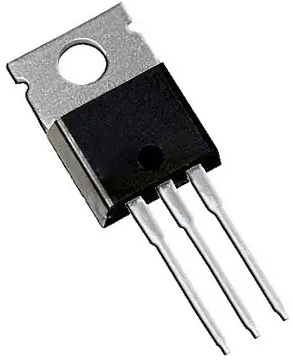

IRFB3077PBF | Infineon Technologies

Name: INFINEON THT MOSFET NFET 75V 120A 3,3mΩ 175°C TO-220 IRFB3077PBF
Brand: Infineon Technologies
SKU: 31S3220
Price: 3.84 EUR
Availability: InStock

INFINEON THT MOSFET NFET 75V 120A 3,3mΩ 175°C TO-220 IRFB3077PBF

Order No.: 31S3220

Manufacturer: Infineon Technologies

Manufacturer SKU
IRFB3077PBF
SP001575594

Manufacturer series: NFET_IRFXXX

EAN: 4099879034069

about the green icons

Active

Total price

( 3.8437 € * / pcs.)

3.84 €

Available: 1,000 pcs.

Quantity

Price per unit*

1 pcs.

3.8437 €

5 pcs.

3.4629 €

25 pcs.

3.1416 €

75 pcs.

2.9869 €

150 pcs.

2.8322 €

*incl. VAT plus shipping costs

Show 9 variants

Please send price/quantity requests to info@buerklin.com

Description

Product by Infineon Technologies at Bürklin Elektronik

MOSFET, IRFB3077PBF, Infineon Technologies

Features

Improved gate, avalanche and dynamic dV/dt ruggedness
Fully characterized capacitance and avalanche SOA
Enhanced body diode dV/dt and dI/dt capability

Applications

High efficiency synchronous rectification in SMPS
Uninterruptible power supply
High speed power switching
Hard switched and high frequency circuits

Technical specifications

	Version	N channel
	drain-source on resistance RDS (on) max @VGS=10V	0.0033 Ω
	Gate Charge Qg @10V (nC)	1.6x10<sup>-7</sup> C
	Enclosure	TO-220
	max. Voltage	75 V
	Max. current	120 A
	max. operating temperature	175 °C
	min. operating temperature	-55 °C
	Assembly	THT
	Power loss	370 W

Show similar products (0)

Logistics

Country of origin	CN
Customs tariff number	85412900

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes

Download

Technical Data Sheet - EN

Technical Data Sheet

Declaration of Conformity - EN

Declaration of Conformity

Declaration of Conformity - DE

Declaration of Conformity
