IPA60R160C6XKSA1 | Infineon Technologies
IPA60R160C6XKSA1
Unit Price (€ / pc.)
2.4157 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
2.42 € *
Price list
Quantity
Price per unit*
1 pcs.
2.4157 €
25 pcs.
2.3324 €
50 pcs.
2.2491 €
100 pcs.
2.1658 €
250 pcs.
2.1420 €
*incl. VAT plus shipping costs
Subject to prior sale

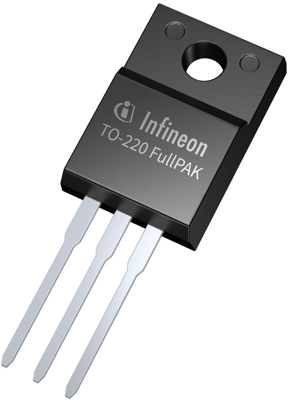

Power Transistor, IPA60R160C6XKSA1, Infineon Technologies
The C6 device provides all benefits of a fast switching superjunction MOSFET while not sacrificing ease of use. Extremely low switching and conduction losses make switching applications even more efficient, compact, lighter and cooler.
Features
- Easy control of switching behavior
- Very high commutation ruggedness
- Easy to use
- Better light load efficiency compared to C3
- Outstanding reliability with proven CoolMOS quality combined with high body diode ruggedness
- More efficient, more compact, lighter and cooler
Applications
- Adapter
- eMobility
- PFC stages for server & telecom
- PC power
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | N channel | |
| Assembly | THT | |
| min. operating temperature | -55 °C | |
| drain-source on resistance RDS (on) max @VGS=10V | 160 mΩ | |
| max. operating temperature | 150 °C | |
| Gate Charge Qg @10V (nC) | 7.5x10<sup>-8</sup> C | |
| Power loss | 34 W | |
| Enclosure | PG-TO220 FullPAK |
Download
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
