IF5626 | IFM electronic
Inductive sensor, PNP/NPN, flush mounting M12, not flush, 1 Form A (N/O) + 1 Form B (N/C), 55 V (DC), 400 mA, IF5626
Order No.: 82P5301
EAN: 4021179096867
MPN:
IF5626
Unit Price (€ / pc.)
101.6022 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
101.60 € *
Price list
Quantity
Price per unit*
1 pcs.
101.6022 €
3 pcs.
98.8057 €
5 pcs.
96.1282 €
*incl. VAT plus shipping costs
Subject to prior sale

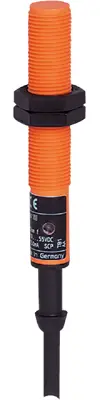

Inductive sensor, IF5626, IFM electronic
Features
- Output function normally open / normally closed programmable
- Two-wire technology
- Very high switching frequency
- High protection rating for the requirements of harsh industrial environments
- Large operating voltage range
Technical specifications
| Detecting distance | 4 mm | |
| Degree of protection (IP) | IP67 | |
| Assembly | flush mounting M12, not flush | |
| switching current | 400 mA | |
| Length | 71 mm | |
| Product type | inductive sensor | |
| Version | PNP/NPN | |
| Switching Voltage (DC) | 55 V | |
| Connection | cable, PUR/PVC 2x0.34 mm², 10 m | |
| Latching switching function | 1 Form A (N/O) + 1 Form B (N/C) |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85365019 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
