IF5345 | IFM electronic
Inductive sensor, PNP, flush mounting M12, not flush, 1 Form A (N/O), 36 V (DC), 250 mA, IF5345
Order No.: 82P5270
EAN: 4021179094054
MPN:
IF5345
Unit Price (€ / pc.)
88.0243 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
88.02 € *
Price list
Quantity
Price per unit*
1 pcs.
88.0243 €
3 pcs.
85.5729 €
5 pcs.
83.2762 €
*incl. VAT plus shipping costs
Subject to prior sale

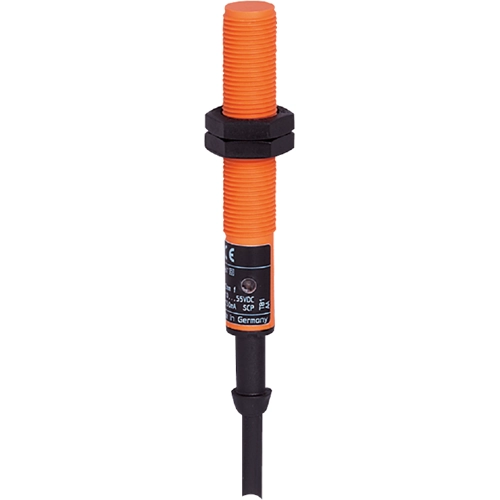

Inductive sensor, IF5345, IFM electronic
Features
- High protection rating for the requirements of harsh industrial environments
- Wide operating temperature range
- Very high switching frequency
- For a precise position detection on machines
Technical specifications
| Detecting distance | 4 mm | |
| Degree of protection (IP) | IP67 | |
| Assembly | flush mounting M12, not flush | |
| switching current | 250 mA | |
| Length | 71 mm | |
| Product type | inductive sensor | |
| Version | PNP | |
| Switching Voltage (DC) | 36 V | |
| Connection | cable, PVC 3x0.34 mm², 2 m | |
| Latching switching function | 1 Form A (N/O) |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85365019 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
