HR10A-10R-10P(73) | HIROSE

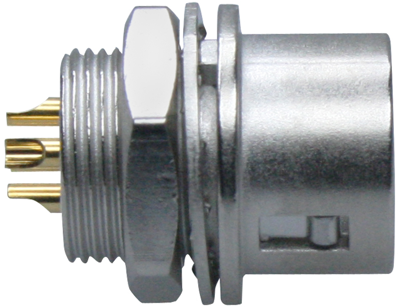

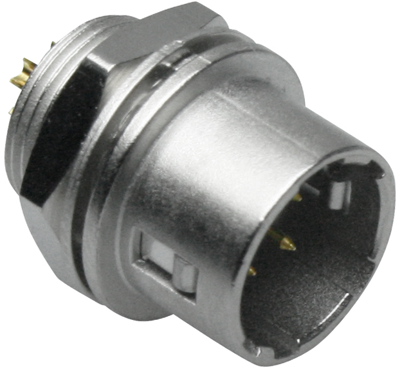

Panel plug, 10 pole, solder cup, push pull, straight, HR10A-10R-10P(73)
Unit Price (€ / pc.)
10.1269 € *
Standard delivery time from the manufacturer is: On Request
Circular connector with push-pull lock, type Hirose HR10.
Solder terminals; Dielectric strength: 300 VAC/min. Current rating: 2.0 A. Insulation resistance: 1.0 Gohm. Contact resistance: max. 10 mohm.
Receptacles, male with solder pins, type HR10.
Contacts: gold-plated.

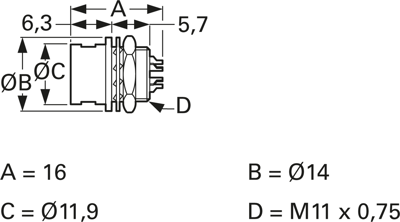

Technical attributes (type, number of poles, dimensions): HR10A - 10R - 10P(73), 10 - pole, A 16, B 14, C 11.9, D M11 x 0.75 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Type of locking | push pull | |
| Cable cross-section | 16.0 mm² | |
| Assembly | PCB mounting | |
| contact surface | silver-plated | |
| Version | panel plug | |
| Contact connection | solder cup | |
| Pin number | 10 pole | |
| Shell Material | zinc die casting |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
