0 522 269 | Hengstler

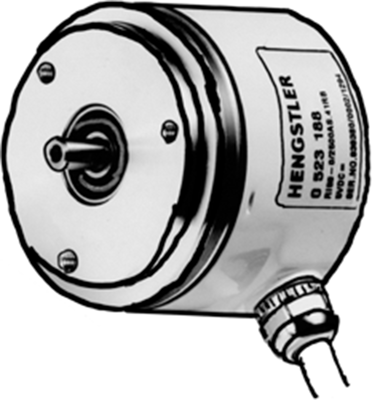

Incremental encoders, type Hengstler RI 58-O.

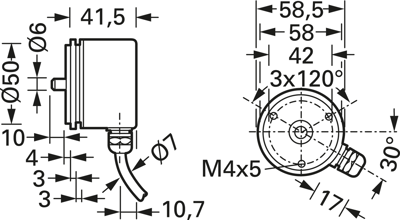

General-purpose rotary encoder for industrial applications, high shock loads and signal precision, with synchronization flange; Supply voltage RS422 + alarm: 5.0 VDC ±10 %. Shaft diameter: 6.0 mm. Shaft load: radial 40 N, axial 20 N. Speed: max. 10000 rpm. Torque: max. 0.5 N/cm. Degree of protection case/shaft entry: IP 65/IP 64. Operating temperatures: –10 to +70 °C. Connection type: 1.5 m PVC cable, radial. Case material: aluminum, D 58 mm. Weight: approx. 360 g.

Technical attributes (type, resolution or number of measuring steps (divisions) within a measuring range): RI 58-O/1000AS.41RB, 1000
