167-00216 | HellermannTyton

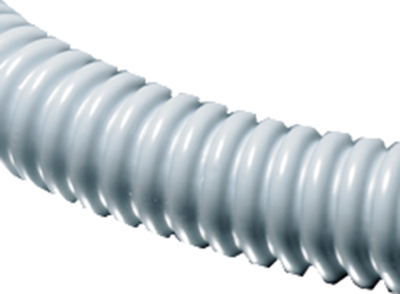

Spiral protective hose, inside Ø 16 mm, outside Ø 21 mm, BR 21 mm, PVC, gray
Active
Product by HellermannTyton at Bürklin Elektronik
Corrugated conduit, type HellermannTyton FlexiGuard NS.
Ultra-flexible, with inner plastic-coated steel helix, small bending radius (corresponds to outer diameter); Material: soft PVC, cadmium-free. Degree of protection: IP 68. Color: gray. Operating temperatures: –20 to +70 °C, briefly +80 °C. Fire protection properties to UL 94 HB. Original bundle length: 10 m.
Technical attributes (type, outer diameter (OD), inner diameter (ID)): NS16, OD 21, ID 16 mm
| Outer diameter | 21 mm | |
| Bending radius | 21 mm | |
| Colour | gray | |
| Flame-retardant | No | |
| Inner diameter | 16 mm | |
| Material | PVC | |
| max. operating temperature | 70 °C | |
| min. operating temperature | -20 °C | |
| Nominal width | 21 mm | |
| Degree of protection (IP) | IP68 |
| Country of origin | DE |
| Customs tariff number | 39173900 |
| Original Packaging | Reel with 10 meters |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
