167-00211 | HellermannTyton
Spiral protective hose, inside Ø 13 mm, outside Ø 17 mm, BR 17 mm, PVC, gray
Unit Price (€ / mtr.)
10.6029 € *
Available: 18 mtr.
Leadtime: 1 Week **
Total Price:
10.60 € *
Price list
Quantity
Price per unit*
1 mtr.
10.6029 €
10 mtr.
9.9722 €
50 mtr.
9.3534 €
100 mtr.
8.7346 €
*incl. VAT plus shipping costs
**Subject to prior sale

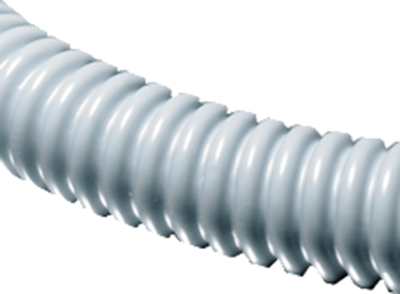

Corrugated conduit, type HellermannTyton FlexiGuard NS.
Ultra-flexible, with inner plastic-coated steel helix, small bending radius (corresponds to outer diameter); Material: soft PVC, cadmium-free. Degree of protection: IP 68. Color: gray. Operating temperatures: –20 to +70 °C, briefly +80 °C. Fire protection properties to UL 94 HB. Original bundle length: 10 m.
Technical attributes (type, outer diameter (OD), inner diameter (ID)): NS11, OD 17, ID 13 mm
Technical specifications
| Outer diameter | 17 mm | |
| Bending radius | 17 mm | |
| Colour | gray | |
| Flame-retardant | No | |
| Inner diameter | 13 mm | |
| Material | PVC | |
| max. operating temperature | 70 °C | |
| min. operating temperature | -20 °C | |
| Nominal width | 17 mm | |
| Degree of protection (IP) | IP68 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39173900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
