157-00083 | HellermannTyton

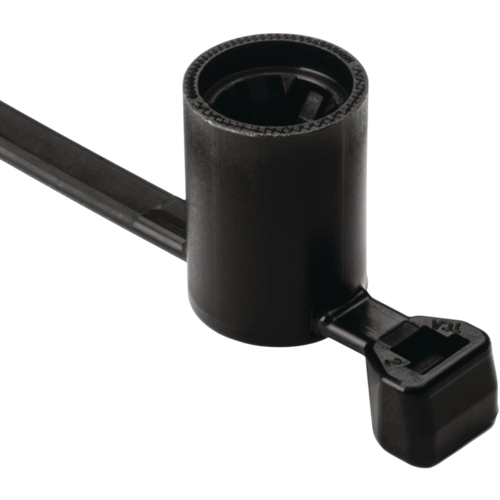

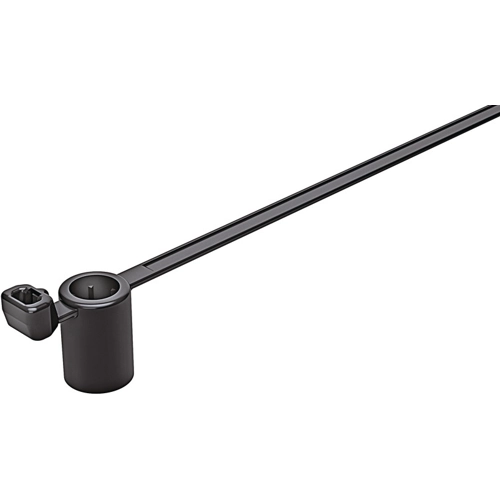

Cable tie, PA, (L x W) 160 x 4.6 mm, bundle-Ø 1 to 35 mm, black, -40 to 105 °C, 157-00083
Order No.: 13H801
EAN: 4031026329345
MPN:
157-00083
T50SSBS6OT-E-PA66HS-BK
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.3570 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
0.36 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3570 €
10 pcs.
0.3213 €
100 pcs.
0.2975 €
500 pcs.
0.2737 €
1000 pcs.
0.2499 €
*incl. VAT plus shipping costs
Subject to prior sale
Fixing tie, 157-00083, HellermannTyton
Fixing tie for stud primarily designed for use in the automotive industry, This part can be used in a wide variety of applications where a weld stud or an ISO bolt is used and a cable needs to be bundled and secured.
Features
- Cable tie head always situated in defined position
- Easy to assemble without the need for a tool

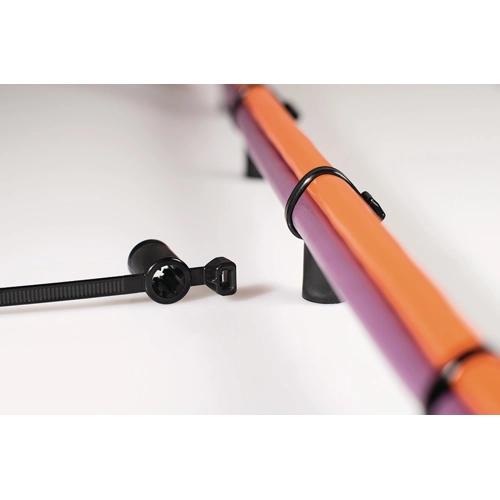

- Bundle runs directly above weld stud with defined stand-off from the panel
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | cable tie | |
| Version | with welded stud mount | |
| Length | 160 mm | |
| Width | 4.6 mm | |
| Thickness | 1.3 mm | |
| min. Bundle diameter | 1 mm | |
| max. Bundle diameter | 35 mm | |
| Min holding force | 200 N | |
| Material | PA | |
| Colour | black | |
| detachable closure | No | |
| UV-resistant | No | |
| Halogen free | No | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 105 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | FR |
| Original Packaging | Bag with 1,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
