126-00081 | HellermannTyton
Cable tie, PA, (L x W) 156 x 4.6 mm, bundle-Ø 1 to 35 mm, black, -40 to 105 °C, 126-00081
Order No.: 13H4026
EAN: 4031026299051
MPN:
126-00081
T50SOSKSFT6.5E-PA66HS-BK
Unit Price (€ / pc.)
0.1714 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
1.71 € *
Price list
Quantity
Price per unit*
10 pcs.
0.1714 €
50 pcs.
0.1583 €
100 pcs.
0.1369 €
500 pcs.
0.1285 €
1000 pcs.
0.1190 €
*incl. VAT plus shipping costs
Subject to prior sale

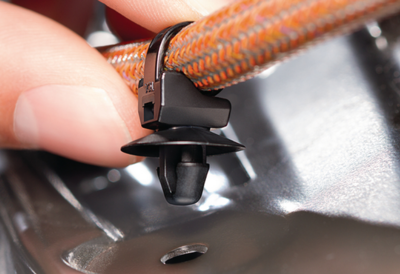

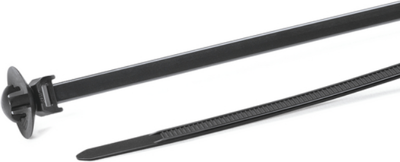

Fixing tie, 126-00081, HellermannTyton
With a diverse range of fixing possibilities, this tie is ideal for use in many different industries, including automotive, aerospace, white goods manufacture, and panel building. This fastening solution is used to secure a cable harness.
Features
- Easy to install without the need for a tool
- Arrowhead simply locks into place
- Disc adjusts tie for pressures from various directions and minimises ingress of dust and dirt
- Cable tie head always situated in a defined position
- KSFT-types with specially rounded arrowhead minimise the assembly height
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Min holding force | 180 N | |
| Width | 4.6 mm | |
| max. Bundle diameter | 35 mm | |
| Material | PA | |
| Product type | cable tie | |
| min. Bundle diameter | 1 mm | |
| max. operating temperature | 105 °C | |
| Thickness | 1.3 mm | |
| min. operating temperature | -40 °C | |
| Version | externally interlocking | |
| detachable closure | No | |
| Halogen free | Yes | |
| Length | 156 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bag with 500 pieces |
| Country of origin | PL |
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
