435-01512 | HellermannTyton
Screw connector, straight, 25-150 mm², cable Ø 28 mm, 435-01512
Order No.: 42P7057
EAN: 4031026638560
MPN:
435-01512
Connector 2515-SNCU-ML
Unit Price (€ / pc.)
18.9210 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
18.92 € *
Price list
Quantity
Price per unit*
1 pcs.
18.9210 €
10 pcs.
17.1479 €
50 pcs.
15.9698 €
100 pcs.
14.7917 €
*incl. VAT plus shipping costs
Subject to prior sale

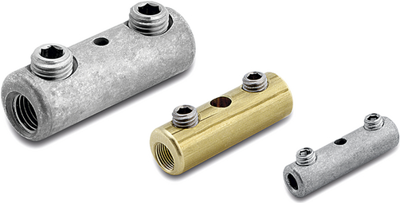

Mechanical connector, 435-01512, HellermannTyton
Galvanised mechanical connector provided with a blind hole and suitable for stranded and solid aluminium and copper conductors in all kind of cable accessories. They also comply with DIN 4740 requirements for shrinking technology.
Features
- For connecting different conductor cross-sections
- Suitable for aluminium and copper conductors
- With blind hole for precise conductor insertion
- Tin-plated connector body and hexagon socket screws
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | screw connection | |
| Design | straight | |
| Colour | silver | |
| Version | screw connector | |
| Cable diameter | 28 mm | |
| Cable cross-section | 25-150 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
