435-01509 | HellermannTyton
Screw connector, straight, 6.0-35 mm², cable Ø 14 mm, 435-01509
Order No.: 42P7055
EAN: 4031026637693
MPN:
435-01509
Connector 635-SNCU-ML
Unit Price (€ / pc.)
8.1634 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
8.16 € *
Price list
Quantity
Price per unit*
1 pcs.
8.1634 €
10 pcs.
7.4256 €
50 pcs.
6.9258 €
100 pcs.
6.4379 €
*incl. VAT plus shipping costs
Subject to prior sale

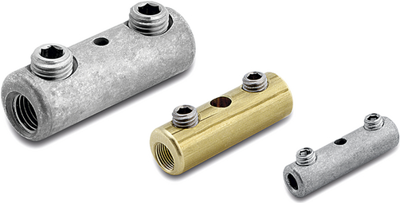

Mechanical connector, 435-01509, HellermannTyton
Galvanised mechanical connector provided with a blind hole and suitable for stranded and solid aluminium and copper conductors in all kind of cable accessories. They also comply with DIN 4740 requirements for shrinking technology.
Features
- For connecting different conductor cross-sections
- Suitable for aluminium and copper conductors
- With blind hole for precise conductor insertion
- Tin-plated connector body and hexagon socket screws
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | screw connection | |
| Design | straight | |
| Colour | silver | |
| Version | screw connector | |
| Cable diameter | 14 mm | |
| Cable cross-section | 6.0-35 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
