10975 | HAUBER Elektronik
Vibration sensor, 10-30 VDC, 10975
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
946.0500 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
946.05 € *
Price list
Quantity
Price per unit*
1 pcs.
946.0500 €
2 pcs.
917.6685 €
3 pcs.
890.1438 €
4 pcs.
863.4402 €
5 pcs.
851.4450 €
*incl. VAT plus shipping costs
Subject to prior sale

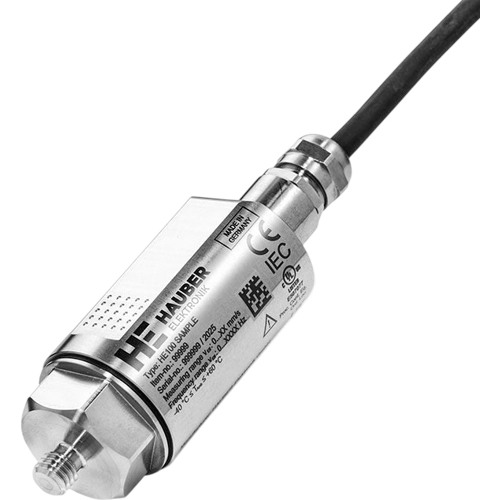

Vibration sensor, 10975, HAUBER Elektronik
The HE101 combines monitoring of absolute bearing vibration with temperature measurement directly at the bearing. This provides a dual safety measure during machine operation-and is also compliant with DIN ISO 10816.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | vibration sensor | |
| Version | two analogue outputs | |
| Voltage | 10-30 VDC | |
| Output signal | 4-20 mA | |
| Connection | cable, PUR, 5 m | |
| Assembly | screw mounting | |
| Length | 101.7 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90318020 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
