09731646907 | Harting

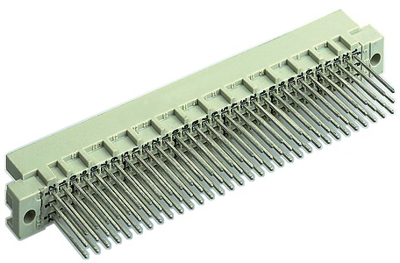

Male connector, type R, 64 pole, a-c, pitch 2.54 mm, wire-wrap, straight, gold-plated, 09731646907
Unit Price (€ / pc.)
7.3304 € *
Available: 40 pcs.
Next delivery: 40 pcs. on 2024-05-24
Leadtime: 4 Weeks **
Total Price:
7.33 € *
Price list
Quantity
Price per unit*
1 pcs.
7.3304 €
10 pcs.
6.4498 €
100 pcs.
5.6644 €
250 pcs.
5.4383 €
1000 pcs.
5.0813 €
*incl. VAT plus shipping costs
**Subject to prior sale
Male connector, 09731646907, Harting
Male connector, Wrap termination, Rated current: 2 A, Contacts: 64, Straight, Copper alloy, Noble metal over Ni Mating side, Ni Termination side, Performance level: 2, acc. to IEC 60603-2, Coding: Coding with loss of contacts, PCB fixing: With fixing flange, Thermoplastic resin, glass-fibre filled, RAL 7032 (pebble grey)
Technical specifications
| Performance level | 2 | |
| Connection | wire-wrap | |
| Design | R | |
| Contact type | pin | |
| contact surface | gold-plated | |
| Contact row assignment | a-c | |
| Rated current | 2 A | |
| Orientation | straight | |
| Pin number | 64 pole | |
| Grid | 2.54 mm |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
