09731642902 | Harting

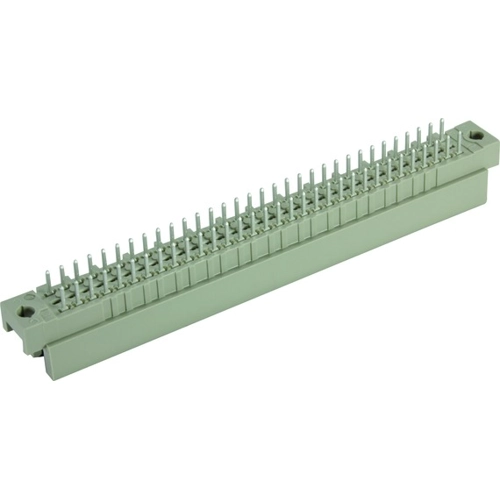

Male connector, type R, 64 pole, a-b-c, pitch 2.54 mm, solder pin, straight, 09731642902
Order No.: 44F8220
EAN: 4099891017842
MPN:
09731642902
09 73 164 2902
Unit Price (€ / pc.)
4.5339 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Male connector, 09731642902, Harting
Male connector, Wave soldering termination, Rated current: 2 A, Contacts: 64, Straight, Copper alloy, Noble metal over Ni Mating side, Sn over Ni Termination side, Performance level: 1, acc. to IEC 60603-2, Coding: Coding with loss of contacts, PCB fixing: With fixing flange, Thermoplastic resin, glass-fibre filled, RAL 7032 (pebble grey)
Technical specifications
| Performance level | 1 | |
| Connection | solder pin | |
| Design | R | |
| Contact type | pin | |
| Contact row assignment | a-b-c | |
| Rated current | 2 A | |
| Orientation | straight | |
| Pin number | 64 pole | |
| Grid | 2.54 mm |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
