09330164725 | Harting

Socket contact insert, 16B, 16 pole, equipped, screw connection, with PE contact, 09330164725

Order No.: 44F3137
EAN: 4099889774801
MPN:
09330164725
09 33 016 4725
Series: Han E
Harting
default L
Image may differ
Unit Price (€ / pc.)
48.3259 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
48.33 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
48.3259 €

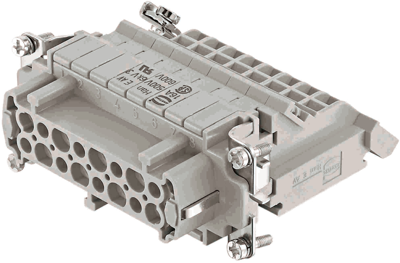

Contact insert, 09 33 016 4725, Harting

Insert, Terminal block connector, Screw termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 16 A, Size: 16 B, Contacts: 16, Conductor cross-section: 0.2-2.5 mm², Copper alloy, Silver plated

Technical Data

  • Contact design: Socket Insert
  • Material: Thermoplastic
  • Shell size: 16B
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 125 °C
  • Rated current: 16 A
  • Rated voltage: 500 V
  • PE contact: Yes
  • Colour: gray
Technical specifications
Version socket insert
Additional parts equipped
Shell size 16B
Contact connection screw connection
PE contact Yes
Pin number 16 pole
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
