09330162791 | Harting

Socket contact insert, 16B, 16 pole, equipped, screw connection, with PE contact, 09330162791

Order No.: 44F3130
EAN: 4099889774733
MPN:
09330162791
09 33 016 2791
Series: Han E
Harting
default L
Image may differ
Unit Price (€ / pc.)
158.6508 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Total Price:
158.65 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
158.6508 €

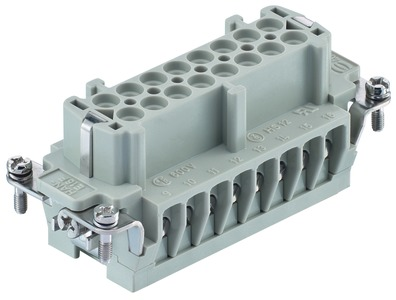

Contact insert, 09 33 016 2791, Harting

Insert, Screw termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 16 A, Size: 16 B, Contacts: 16, Conductor cross-section: 1-2.5 mm²

Technical Data

  • Contact design: Socket Insert
  • Material: Thermoplastic
  • Shell size: 16B
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 125 °C
  • Rated current: 16 A
  • Rated voltage: 400 V
  • PE contact: Yes
  • Colour: gray
Technical specifications
Version socket insert
Additional parts equipped
Shell size 16B
Contact connection screw connection
PE contact Yes
Pin number 16 pole
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
