1455J1601 | Hammond
Die-cast aluminum enclosure, (L x W x H) 160 x 78 x 27 mm, natural, IP54, 1455J1601
Unit Price (€ / pc.)
17.1241 € *
Available: 0 pcs.
Available in 7 Days: 150 pcs.
Leadtime: 1 Week **

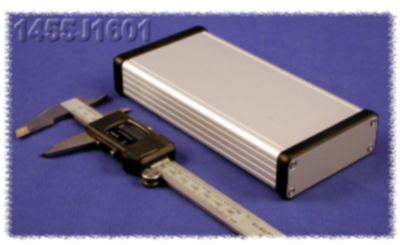

Aluminum enclosure, 1455J1601, HAMMOND
The Hammond 1455 series enclosure has an extruded aluminium body and two easy to machine, black solid ABS end panels with integral bezel.
This enclosures are designed to house P.C. boards or for equipment interfacing.
Features
- Sized for standard Eurocards
- PCBs mount horizontally by sliding into internal slots extruded into the enclosure body
- Enclosure includes two solid black plastic end panels with integral bezel
- DIN Rail clips & flange kits are available separately
Technical specifications
| Width | 78 mm | |
| Colour | natural | |
| Height | 27 mm | |
| Length | 160 mm | |
| Material | die-cast aluminum | |
| Degree of protection (IP) | IP54 |
Download
Logistics
| Country of origin | CA |
| Customs tariff number | 76169990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
