7210200000B | GMW
Panel-mount instrument, Front panel, Moving-iron mechanism, AC/DC
Active
Product by GMW at Bürklin Elektronik

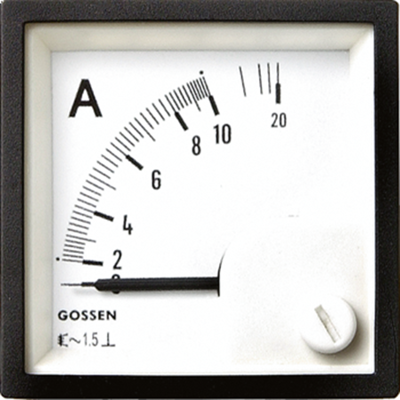

Display instrument GMW EQB 72; ezel dimensions of 72 x 72 mm
Moving iron instrument to safety standard EN 61010
for DC and AC current and voltage
with black slim-line bezel to DIN 43718
Case material: polycarbonate, self-extinguishing and non-dripping to UL 94 V-0
Glass: glare resistant
Tolerance class: 1.5
Scaling: rough-fine
Inherent power consumption: at current/voltage 0.6 to 0.8 VA/2.5 VA
Degree of protection: IP 52
Operating position: vertical
Mounting depth: without/with covers 53/66 mm
Mounting cutout: 68 x 68 mm
Scale length: 63 mm
Operating voltage: max. 600 V
Test voltage: 5.8 kV
Weight: 200 g
10/20 A
| AC or DC measurement possible | AC and DC | |
| Connection | screw connection | |
| Width | 72 mm | |
| Width of cut-out | 68 mm | |
| Installation depth | 66 mm | |
| Height | 72 mm | |
| Height of cut-out | 68 mm | |
| Max. current | 20 A | |
| Min. current | 10 A | |
| Assembly | front panel mounting |
| Country of origin | CN |
| Customs tariff number | 90303370 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
