4801530000B | GMW
Panel-mount instrument, 1.5 A, 3 A, Front panel
Order No.: 15K200
EAN: 4099891453121
MPN:
4801530000B
EQB48 1,5/3A
Unit Price (€ / pc.)
23.2883 € *
Available: 0 pcs.
Leadtime: 1 Week **

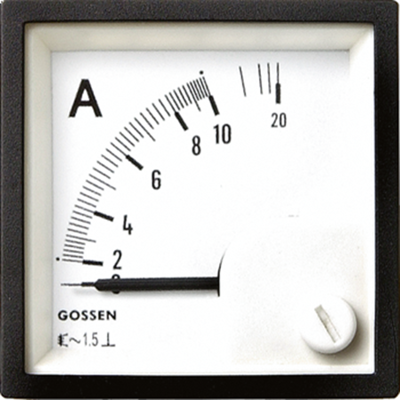

Display instruments, type GMW EQB.
Moving iron instrument to safety standard EN 61010, for DC and AC current and voltage, with black slim-line bezel to DIN 43718; Case material: polycarbonate, self-extinguishing and non-dripping to UL 94 V-0. Glass: glare resistant. Tolerance class: 1.5. Scaling: rough-fine. Inherent power consumption: at current/voltage 0.6 to 0.8 VA/2.5 VA. Degree of protection: IP 52. Operating position: vertical. Mounting depth: without/with covers 53/66 mm.
With bezel dimensions of 48 x 48 mm, type EQB 48.
Mounting cutout: 45 x 45 mm. Scale length: 42 mm. Operating voltage: max. 300 V. Test voltage: 3.5 kV. Weight: 100 g.
Type: 48015 30000 B, 1.5/3.0 A
Technical specifications
| AC or DC measurement possible | AC and DC | |
| Connection | screw connection | |
| Width | 45 mm | |
| Width of cut-out | 45 mm | |
| Installation depth | 66 mm | |
| Height | 45 mm | |
| Height of cut-out | 45 mm | |
| Max. current | 3 A | |
| Min. current | 1.5 A | |
| Assembly | front panel mounting |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 90303370 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
