1 2030 101 021 | Flexa

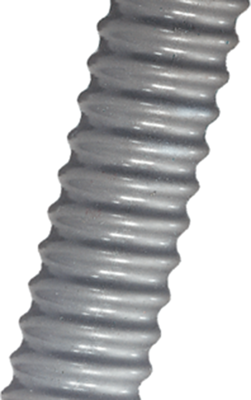

Spiral protective hose, inside Ø 22 mm, outside Ø 27 mm, BR 20 mm, PVC, gray, 1 2030 101 021
Unit Price (€ / mtr.)
9.1392 € *
Available: 21 mtr.
Total Price:
9.14 € *
Price list
Quantity
Price per unit*
1 mtr.
9.1392 €
25 mtr.
8.5323 €
50 mtr.
7.9254 €
100 mtr.
7.6160 €
*incl. VAT plus shipping costs
Subject to prior sale
Plastic conduit, PVC, series AIRflex-KUW-PVC-AS, type Flexa 2030.101.

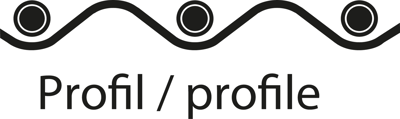

Tested to EN/IEC 61386-23, ultra-flexible, can be stretched and upset as required, air-tight, liquid-proof, free of silicon and cadmium, corrosion protected inside; Structure: strip-wound. Sheathing: PVC. Inner helix: PVC sheathed spring steel wire. Color: gray. Degree of protection: IP 68. Operating temperatures: –25 to +80 °C. Certifications: VDE, UL. Original bundle length: 50 m.
Technical attributes (type, inner diameter (ID), outer diameter (OD), bending radius (BR)): 2030.101.021, ID 22, OD 27, Br 20 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 80 °C | |
| Flame-retardant | Yes | |
| min. operating temperature | -25 °C | |
| Colour | gray | |
| Outer diameter | 27 mm | |
| Material | PVC | |
| Bending radius | 20 mm | |
| Inner diameter | 22 mm | |
| Degree of protection (IP) | IP68 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39173200 |
| Original Packaging | Reel with 50 meters |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
