1 5010 340 025 | Flexa

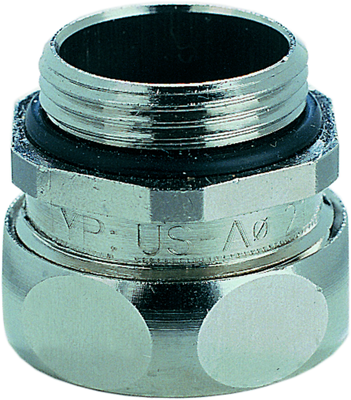

Straight hose fitting, M25, 27 mm, brass, nickel-plated, IP65, silver, (L) 41 mm
Corresponding metal safety bushings, series US-M
With outer thread and surface for hexagonal wrench; Connecting thread: metric to EN 60423. High degree of protection against the ingress of dust and liquids, vibration-proof, resistant against tensile stress. Housing material: nickel-plated brass. Inner bushing: brass. Seal ring: TPE, O-ring: NBR. Degree of protection: IP 65. Operating temperatures: - 40 to +125 °C.
Technical attributes (type, connecting thread, conduit outer diameter (OD), dimension B, dimension L): 5010.340.025, M 25 x 1.5, OD 27, B 39, L 41 mm
| Colour | silver | |
| Thread size | M25 | |
| Length | 41 mm | |
| Material | brass, nickel-plated | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -40 °C | |
| Nominal width | 27 mm | |
| Degree of protection (IP) | IP65 |
| Country of origin | DE |
| Customs tariff number | 74122000 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
