1 2030 101 016 | Flexa

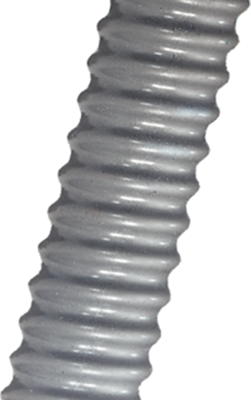

Spiral protective hose, inside Ø 16 mm, outside Ø 21 mm, BR 17 mm, PVC, gray
Product by Flexa at Bürklin Elektronik
Plastic conduit, PVC, series AIRflex-KUW-PVC-AS, type Flexa 2030.101.

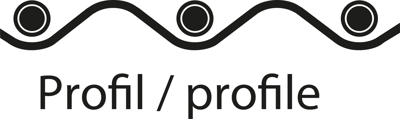

Tested to EN/IEC 61386-23, ultra-flexible, can be stretched and upset as required, air-tight, liquid-proof, free of silicon and cadmium, corrosion protected inside; Structure: strip-wound. Sheathing: PVC. Inner helix: PVC sheathed spring steel wire. Color: gray. Degree of protection: IP 68. Operating temperatures: –25 to +80 °C. Certifications: VDE, UL. Original bundle length: 50 m.
Technical attributes (type, inner diameter (ID), outer diameter (OD), bending radius (BR)): 2030.101.016, ID 16, OD 21, Br 17 mm
| Outer diameter | 21 mm | |
| Bending radius | 17 mm | |
| Colour | gray | |
| Flame-retardant | Yes | |
| Inner diameter | 16 mm | |
| Material | PVC | |
| max. operating temperature | 80 °C | |
| min. operating temperature | -25 °C | |
| Degree of protection (IP) | IP68 |
| Country of origin | DE |
| Customs tariff number | 39173200 |
| Original Packaging | Reel with 50 meters |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
