15010027048 | Flexa
Mounting bracket, PG48, (L x W x H) 90 x 78.4 x 20 mm, head Ø 60 mm, mounting Ø 4.5 mm, thickness 2 mm, steel, metal, 15010027048
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
4.4268 € *
Standard delivery time from the manufacturer is: 2 Weeks

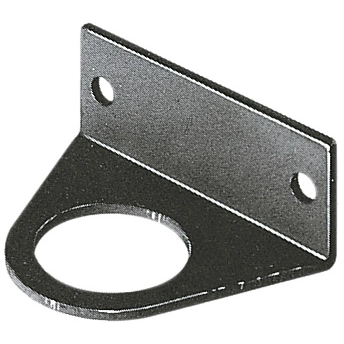

Mounting bracket, 15010027048, Flexa
Fastening angle, angle sheet for PG threads with a through-hole and two fastening bores.

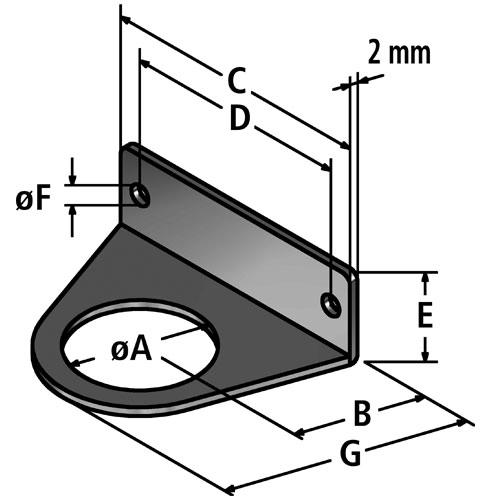

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | mounting bracket | |
| Version | PG48 | |
| Length | 90 mm | |
| Width | 78.4 mm | |
| Height | 20 mm | |
| Head Diameter | 60 mm | |
| Wall thickness | 2 mm | |
| Mounting hole size | 4.5 mm | |
| Colour | metal | |
| Material | steel | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 200 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 73269098 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
