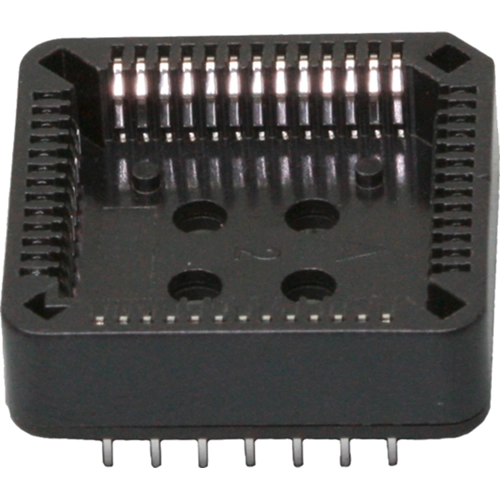

Chip sockets, type Fischer PLCC.
For PLCCs with package design to standard EiA/JEDEC Type A; Insulating body: PBT GF, UL 94 V-0. Contact material: nickel-plated phosphor bronze, additionally tinned. Rated current: 1.0 A. Rated voltage: 125 VDC. Operating temperatures: –55 to +110 °C. Features: with drainage holes for better internal cleaning, mold with test holes next to each contact spring. Double polarity indication.
Technical attributes (number of poles, length (L), width (W), mounting height (H)): 68-pole, L 30.8, W 30.8, H 8.2 mm
Version | Chip socket | |
Width | 30.8 mm | |
Suitable for | PLCC | |
Height | 8.2 mm | |
Contact material | CuSn-alloy | |
Length | 30.8 mm | |
Material | Polyphenylene sulfide/Glass fiber | |
max. operating temperature | 105 °C | |
min. operating temperature | -40 °C | |
Rated current | 1 A | |
Pin number | 68 pole | |
Grid | 2.54 mm |
Country of origin | TW |
Customs tariff number | 85369095 |
Original Packaging | Bar with 19 pieces |
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | Yes |
Order No.:
15B5276
Manufacturer SKU:
10007429
Order No.:
15B5272
Manufacturer SKU:
10007423
Order No.:
15B5274
Manufacturer SKU:
10007427
Order No.:
15B5271
Manufacturer SKU:
10007419
Order No.:
15B5273
Manufacturer SKU:
10007425
Order No.:
15B5270
Manufacturer SKU:
PLCC 28
