10007425 | Fischer Elektronik

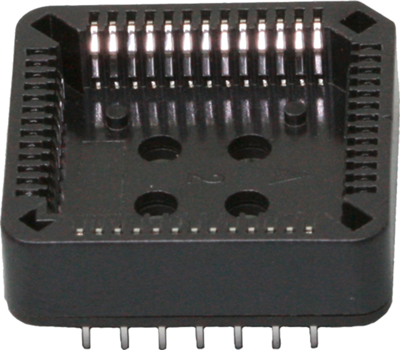

Chip socket, 52 pole, pitch 2.54 mm , CuSn-alloy for PLCC

Order No.: 15B5273
EAN: 4099879023599
MPN:
10007425
Series: PLCC
Fischer Elektronik
default L
Image may differ
Unit Price (€ / pc.)
3.1892 € *
Available: 190 pcs.
Leadtime: 8 Weeks **
Total Price:
3.19 € *
Price list
Quantity
Price per unit*
1 pcs.
3.1892 €
25 pcs.
2.7013 €
100 pcs.
2.4990 €
250 pcs.
2.3681 €
1000 pcs.
2.1777 €
*incl. VAT plus shipping costs
**Subject to prior sale

Chip sockets, type Fischer PLCC.

For PLCCs with package design to standard EiA/JEDEC Type A; Insulating body: PBT GF, UL 94 V-0. Contact material: nickel-plated phosphor bronze, additionally tinned. Rated current: 1.0 A. Rated voltage: 125 VDC. Operating temperatures: –55 to +110 °C. Features: with drainage holes for better internal cleaning, mold with test holes next to each contact spring. Double polarity indication.

Technical attributes (number of poles, length (L), width (W), mounting height (H)): 52-pole, L 25.7, W 25.7, H 8.2 mm

Technical specifications
Version Chip socket
Width 25.7 mm
Suitable for PLCC
Height 8.2 mm
Contact material CuSn-alloy
Length 25.7 mm
Material Polyphenylene sulfide/Glass fiber
max. operating temperature 105 °C
min. operating temperature -40 °C
Rated current 1 A
Pin number 52 pole
Grid 2.54 mm
Logistics
Country of origin TW
Customs tariff number 85369095
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
Width
Length
Pin number
Material
Version
Grid
Contact material
Height
Suitable for
min. operating temperature
max. operating temperature
Rated current
1 item in 6 variations
*incl. VAT plus shipping costs
Item description
Total
Price list
Width
Length
Pin number
Material
Version
Grid
Contact material
Height
Suitable for
min. operating temperature
max. operating temperature
Rated current
Chip socket, 28 pole, pitch 2.54 mm , CuSn-alloy for PLCC
Order No.:
 15B5270
Manufacturer:
 Fischer Elektronik
Manufacturer SKU:
 PLCC 28
Available: 128 pcs. Leadtime: 1 Week **
Total Price: 1.32 € *
1 pcs.
1.3209 €
18.1 mm
18.1 mm
28 pole
Polyphenylene sulfide/Glass fiber
Chip socket
2.54 mm
CuSn-alloy
8.2 mm
PLCC
-40 °C
105 °C
1 A
Chip socket, 32 pole, pitch 2.54 mm , CuSn-alloy for PLCC
Order No.:
 15B5271
Manufacturer:
 Fischer Elektronik
Manufacturer SKU:
 10007419
Available: 145 pcs. Leadtime: 9 Weeks **
Total Price: 1.44 € *
1 pcs.
1.4399 €
20.7 mm
18.1 mm
32 pole
Polyphenylene sulfide/Glass fiber
Chip socket
2.54 mm
CuSn-alloy
8.2 mm
PLCC
-40 °C
105 °C
1 A
Chip socket, 44 pole, pitch 2.54 mm , CuSn-alloy for PLCC
Order No.:
 15B5272
Manufacturer:
 Fischer Elektronik
Manufacturer SKU:
 10007423
Available: 350 pcs. Leadtime: 13 Weeks **
Total Price: 3.05 € *
1 pcs.
3.0464 €
25 pcs.
2.5823 €
100 pcs.
2.3919 €
250 pcs.
2.2610 €
1000 pcs.
2.0825 €
23.2 mm
23.2 mm
44 pole
Polyphenylene sulfide/Glass fiber
Chip socket
2.54 mm
CuSn-alloy
8.2 mm
PLCC
-40 °C
105 °C
1 A
Chip socket, 52 pole, pitch 2.54 mm , CuSn-alloy for PLCC
Order No.:
 15B5273
Manufacturer:
 Fischer Elektronik
Manufacturer SKU:
 10007425
Available: 190 pcs. Leadtime: 8 Weeks **
Total Price: 3.19 € *
1 pcs.
3.1892 €
25 pcs.
2.7013 €
100 pcs.
2.4990 €
250 pcs.
2.3681 €
1000 pcs.
2.1777 €
25.7 mm
25.7 mm
52 pole
Polyphenylene sulfide/Glass fiber
Chip socket
2.54 mm
CuSn-alloy
8.2 mm
PLCC
-40 °C
105 °C
1 A
Chip socket, 68 pole, pitch 2.54 mm , CuSn-alloy for PLCC
Order No.:
 15B5274
Manufacturer:
 Fischer Elektronik
Manufacturer SKU:
 10007427
Available: 306 pcs. Leadtime: 13 Weeks **
Total Price: 3.40 € *
1 pcs.
3.4034 €
19 pcs.
2.8917 €
114 pcs.
2.5585 €
266 pcs.
2.4276 €
1007 pcs.
2.2372 €
30.8 mm
30.8 mm
68 pole
Polyphenylene sulfide/Glass fiber
Chip socket
2.54 mm
CuSn-alloy
8.2 mm
PLCC
-40 °C
105 °C
1 A
Chip socket, 84 pole, pitch 2.54 mm , CuSn-alloy for PLCC
Order No.:
 15B5276
Manufacturer:
 Fischer Elektronik
Manufacturer SKU:
 10007429
Available: 137 pcs. Leadtime: 13 Weeks **
Total Price: 3.75 € *
1 pcs.
3.7485 €
16 pcs.
3.2963 €
112 pcs.
2.9750 €
256 pcs.
2.8560 €
1008 pcs.
2.6894 €
36 mm
36 mm
84 pole
Polyphenylene sulfide/Glass fiber
Chip socket
2.54 mm
CuSn-alloy
8.2 mm
PLCC
-40 °C
105 °C
1 A
