SK 59 50 SA SL | Fischer Elektronik
Extruded heatsink, (L x W x H) 50 x 42.7 x 12.5 mm, 9.1 to 4 K/W, black anodized, SK 59 50 SA SL
Unit Price (€ / pc.)
5.7477 € *
Available: 105 pcs.
Total Price:
5.75 € *
Price list
Quantity
Price per unit*
1 pcs.
5.7477 €
10 pcs.
5.0575 €
100 pcs.
4.4387 €
250 pcs.
4.2721 €
1000 pcs.
3.9865 €
*incl. VAT plus shipping costs
Subject to prior sale

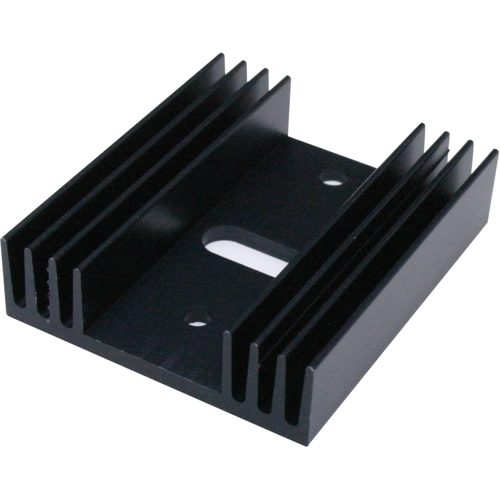

Profile heatsink with universal perforation grid, type Fischer SK 59.
Made of black anodized aluminum. Perforation. for example, for TO 220 and TOP 3 packages.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Min. heat resistance | 4 K/W | |
| Max. heat resistance | 9.1 K/W | |
| Length | 50 mm | |
| Width | 42.7 mm | |
| Height | 12.5 mm | |
| Material | aluminum | |
| Version | extruded heatsink | |
| Surface type | black anodized |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 76042990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
