10022730 | Fischer Elektronik

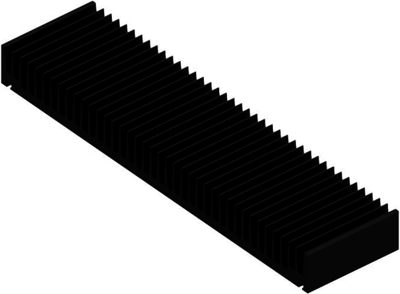

Extruded heatsink, 100 x 400 x 40 mm, 0.58 to 0.31 K/W, black anodized

Order No.: 73B100
EAN: 4099889476637
MPN:
10022730
SK 93 100 SA
Series: SK
Fischer Elektronik
default L
Image may differ
Print
Key Specification:
Min. heat resistance 0.31 K/W
Max. heat resistance 0.58 K/W
Length 100 mm
Width 400 mm
Show 2 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
41.2097 € *
Available: 15 pcs.
Leadtime: 6 Weeks **
Total Price:
41.21 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
41.2097 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

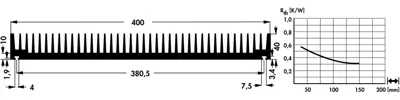

Profile heatsinks, type Fischer SK 93.

Made of black anodized aluminum, no perforation.
Technical specifications
Version profile heatsink
Width 400 mm
Height 40 mm
Length 100 mm
Material die-cast aluminum
Max. heat resistance 0.58 K/W
Min. heat resistance 0.31 K/W
Surface type black anodized
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 76042990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
Length
Unit:
Material
Max. heat resistance
Version
Width
Unit:
Height
Unit:
Min. heat resistance
Surface type
1 item in 2 variations
*incl. VAT plus shipping costs
Item description
Total
Price list
Length
Material
Max. heat resistance
Version
Width
Height
Min. heat resistance
Surface type
Extruded heatsink, 200 x 400 x 40 mm, 0.58 to 0.31 K/W, black anodized
Extruded heatsink, 200 x 400 x 40 mm, 0.58 to 0.31 K/W, black anodized
Order No.:
 73B114
Manufacturer:
 Fischer Elektronik
Manufacturer SKU:
 10105863
Available: 9 pcs. Leadtime: 6 Weeks **
Total Price: 136.31 € *
1 pcs.
136.3145 €
5 pcs.
128.1511 €
15 pcs.
123.2245 €
50 pcs.
117.7743 €
150 pcs.
112.8715 €
200 mm
die-cast aluminum
0.58 K/W
profile heatsink
400 mm
40 mm
0.31 K/W
black anodized
*incl. VAT plus shipping costs
**Subject to prior sale
Images may differ
