10022725 | Fischer Elektronik

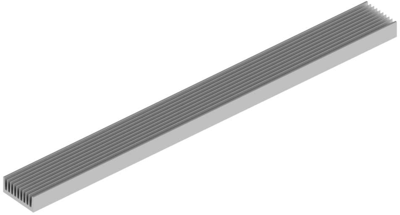

Extruded heatsink, 1000 x 100 x 40 mm, 2.15 to 0.9 K/W, natural aluminum

Order No.: 65B934
EAN: 4099889473834
MPN:
10022725
SK 92 1000 AL
Fischer Elektronik
default L
front L
Image may differ
Print
Key Specification:
Min. heat resistance 0.9 K/W
Max. heat resistance 2.15 K/W
Length 1000 mm
Width 100 mm
Download Datasheet Technical specifications
Unit Price (€ / pc.)
144.8706 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Add to Cart
Total Price:
144.87 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
144.8706 €
Description
Technical specifications
Download
Logistics
Compliance

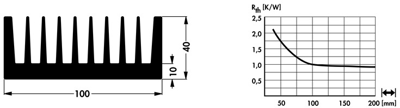

Standard extruded heatsink, 10022725, Fischer Elektronik

Standard extruded heatsink with thermal resistance: 2.15-0.9 K/W, Surafce: raw degreased aluminium (by the metre raw aluminium).
Technical specifications
Version profile heatsink
Width 100 mm
Height 40 mm
Length 1000 mm
Material die-cast aluminum
Max. heat resistance 2.15 K/W
Min. heat resistance 0.9 K/W
Surface type natural aluminum
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 76042990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
