10022718 | Fischer Elektronik

Extruded heatsink, 50 x 100 x 40 mm, 2.15 to 1.2 K/W, black anodized

Order No.: 72B360
EAN: 4099889476200
MPN:
10022718
SK 92/50 SA
Series: SK
Fischer Elektronik
default L
Image may differ
Print
Key Specification:
Min. heat resistance 1.2 K/W
Max. heat resistance 2.15 K/W
Length 50 mm
Width 100 mm
Show 3 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
5.7239 € *
Available: 11 pcs.
Leadtime: 6 Weeks **
Total Price:
5.72 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
5.7239 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

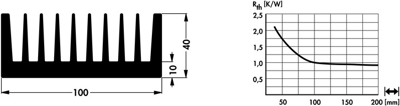

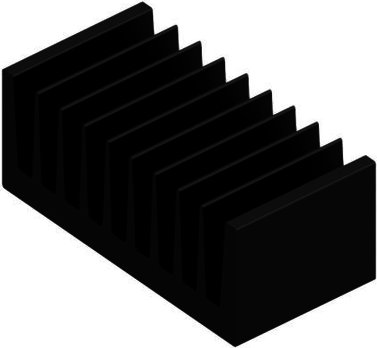

Profile heatsinks, type Fischer SK 92.

Made of black anodized aluminum, no perforation
Technical specifications
Version profile heatsink
Width 100 mm
Height 40 mm
Length 50 mm
Material die-cast aluminum
Max. heat resistance 2.15 K/W
Min. heat resistance 1.2 K/W
Surface type black anodized
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 76042990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
Length
Unit:
Material
Max. heat resistance
Version
Width
Unit:
Height
Unit:
Min. heat resistance
Surface type
1 item in 3 variations
*incl. VAT plus shipping costs
Item description
Total
Price list
Length
Material
Max. heat resistance
Version
Width
Height
Min. heat resistance
Surface type
Extruded heatsink, 75 x 100 x 40 mm, 2.15 to 1.2 K/W, black anodized
Extruded heatsink, 75 x 100 x 40 mm, 2.15 to 1.2 K/W, black anodized
Order No.:
 72B362
Manufacturer:
 Fischer Elektronik
Manufacturer SKU:
 10022720
Available: 49 pcs. Leadtime: 1 Week **
Total Price: 14.46 € *
1 pcs.
14.4585 €
10 pcs.
12.7330 €
50 pcs.
11.8524 €
150 pcs.
11.3169 €
500 pcs.
10.7576 €
75 mm
die-cast aluminum
2.15 K/W
profile heatsink
100 mm
40 mm
1.2 K/W
black anodized
Extruded heatsink, 100 x 100 x 40 mm, 2.15 to 1.2 K/W, black anodized
Extruded heatsink, 100 x 100 x 40 mm, 2.15 to 1.2 K/W, black anodized
Order No.:
 72B364
Manufacturer:
 Fischer Elektronik
Manufacturer SKU:
 10022722
Available: 13 pcs. Leadtime: 11 Weeks **
Total Price: 17.93 € *
1 pcs.
17.9333 €
10 pcs.
15.7794 €
50 pcs.
14.7084 €
150 pcs.
14.0658 €
500 pcs.
13.3518 €
100 mm
die-cast aluminum
2.15 K/W
profile heatsink
100 mm
40 mm
1.2 K/W
black anodized
